BT1121 UP Rod Outdoor LED Wall Light
Model: BT1121 UP

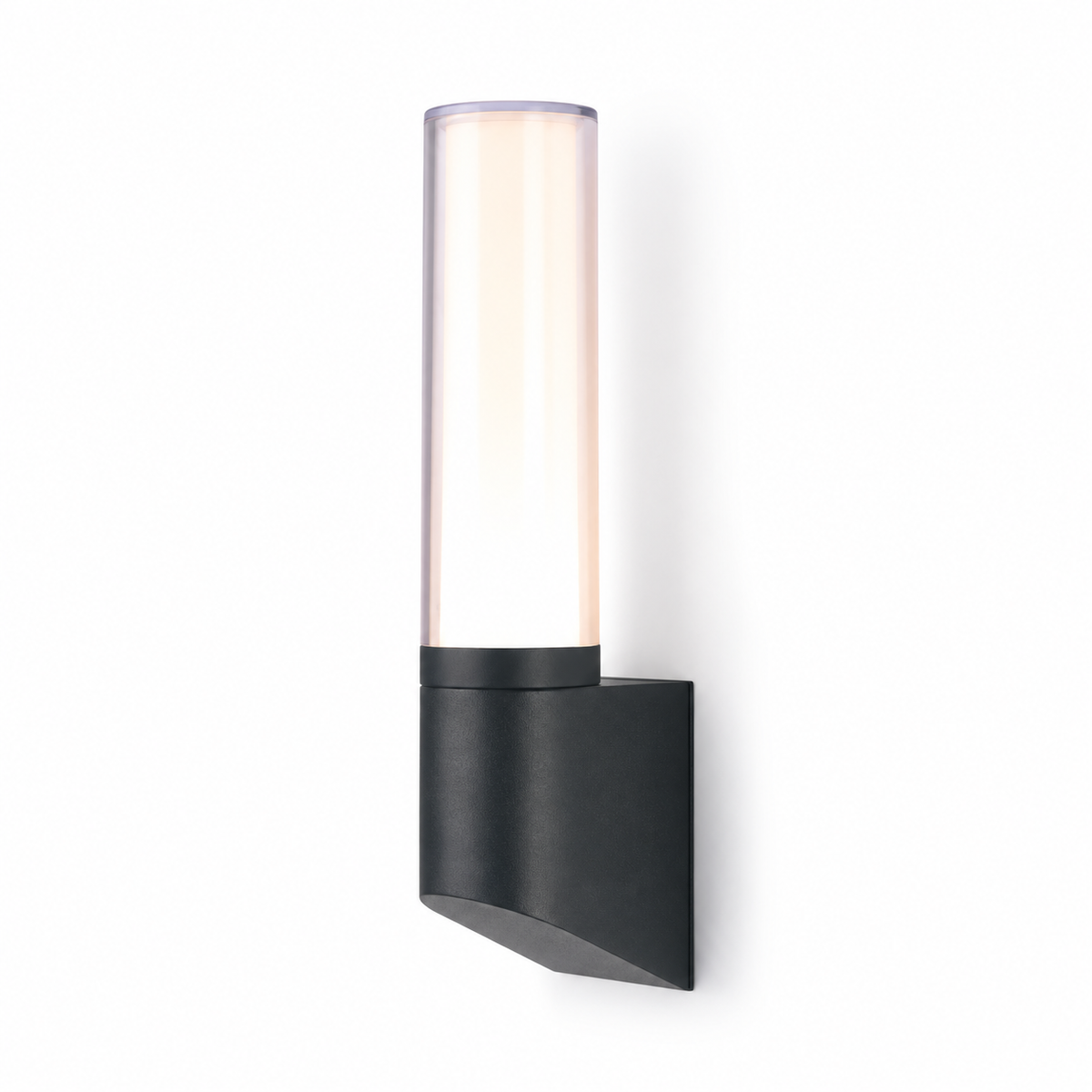

The Rod BT1121 UP combines a vertical opal PC light tube with a dark die-cast aluminium mounting base. It brings a clean modern profile to exterior walls, terraces and entrances.
Key Features
- Slim vertical cylinder with evenly diffused glow.
- Housing and diffuser: Die-cast aluminium body; opal PC diffuser
- Rated input: AC 220–240V, 50/60Hz
- Available in catalogue-listed RAL finishes
- Protection rating: IP54
Technical Specifications
| Model | BT1121 UP |
|---|---|
| Rated power | 8.5W |
| Total luminous flux | 600 lm |
| Light-source luminous flux | 900 lm (light-source luminous flux) |
| Colour temperature | 3000K |
| LED source | 1 × 8W COB LED |
| Input voltage | AC 220–240V, 50/60Hz |
| Housing / diffuser | Die-cast aluminium body; opal PC diffuser |
| Protection rating | IP54 |
| Safety class | Class I |
| Product dimensions | Approx. Ø66 mm head; see drawing |
Applications

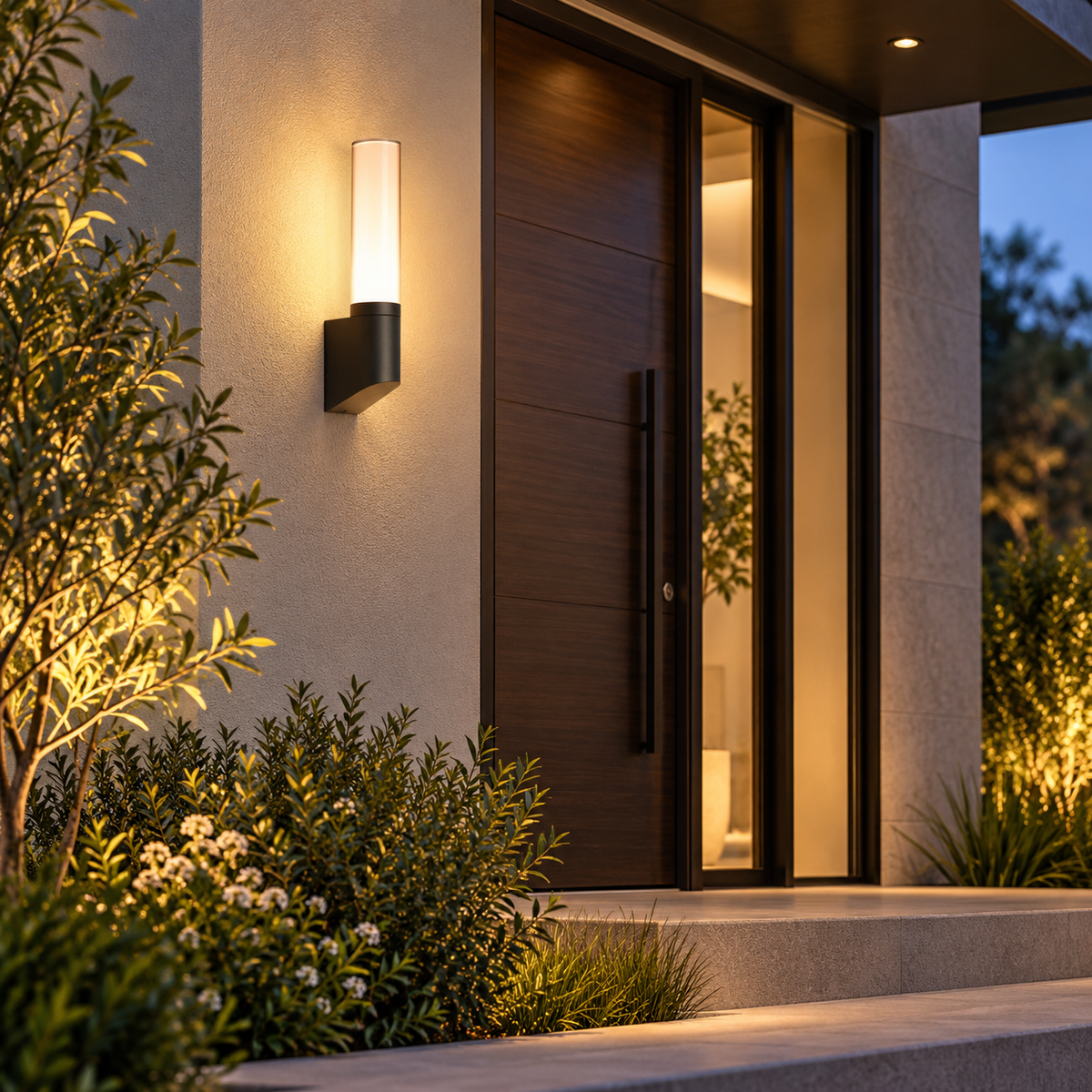

Villa entrance walls, residential terraces and garden walls.
Finish Options
RAL 9005 Jet Black; RAL 7043 Traffic Grey B; RAL 9006 White Aluminium; RAL 9003 Signal White. Availability and custom finishes subject to confirmation.
For drawings, finishes, and project quotations, please contact BTR. Specifications are based on catalogue information and should be verified before final specification.
