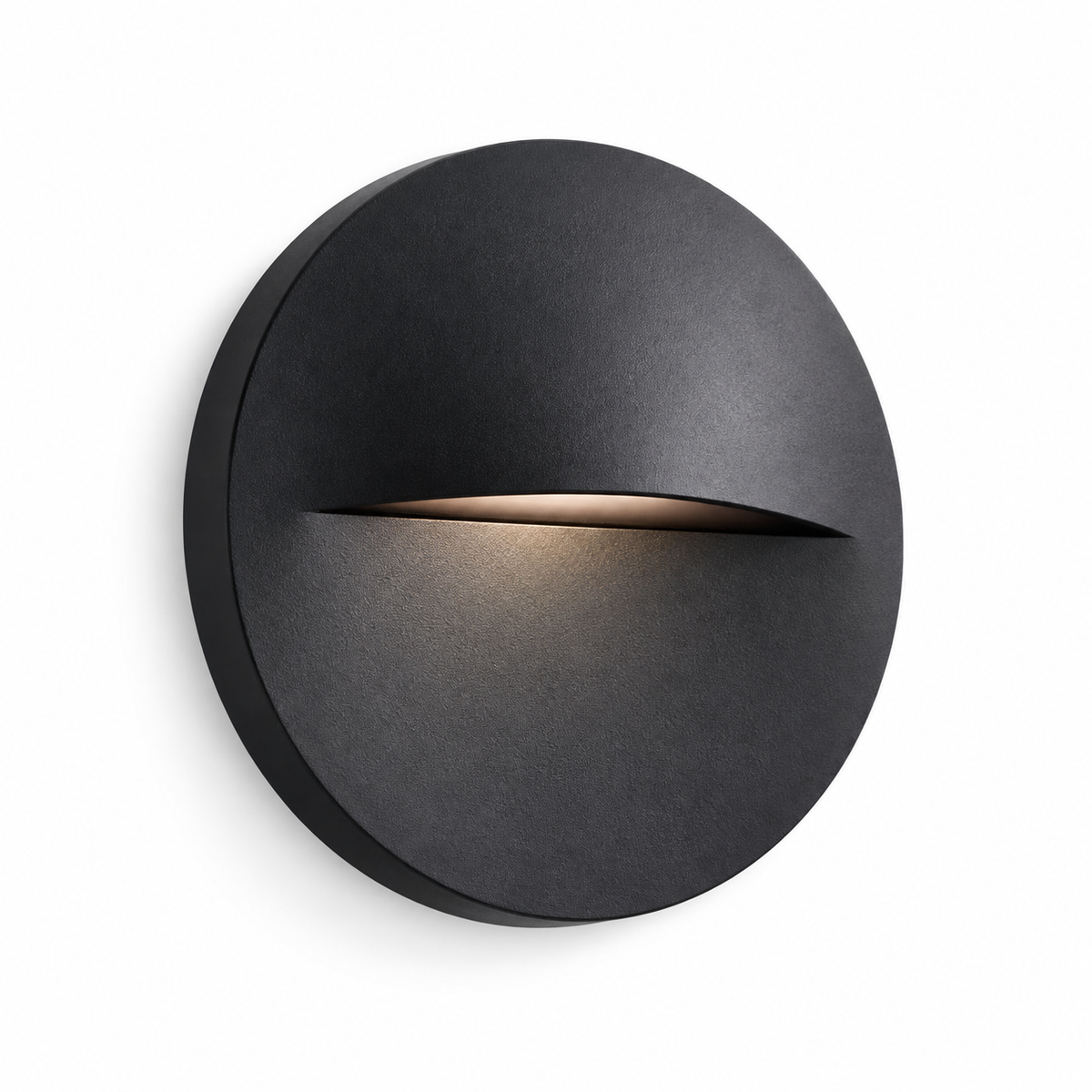

BT55064 Round LED Outdoor Slot Wall Light
Model: BT55064
The BT55064 is a round surface-mounted outdoor LED luminaire featuring a subtle horizontal light slot. Its aluminium housing and opal PC diffuser provide a neat low-profile design for accent and wayfinding illumination.
Key Features
- Round form and discreet slit-style light output.
- Housing and diffuser: Aluminium body; opal PC diffuser
- Rated input: AC 220–240V, 50/60Hz
- Powder-coated finish; colour customization indicated in catalogue
- Protection rating: IP65
Technical Specifications
| Model | BT55064 |
|---|---|
| Rated power | 3W |
| Total luminous flux | 60 lm |
| Colour temperature | 3000K |
| LED source | SMD LED |
| Input voltage | AC 220–240V, 50/60Hz |
| Housing / diffuser | Aluminium body; opal PC diffuser |
| Protection rating | IP65 |
| Safety class | Class I |
| Product dimensions | Ø140 × 35 mm |
Applications

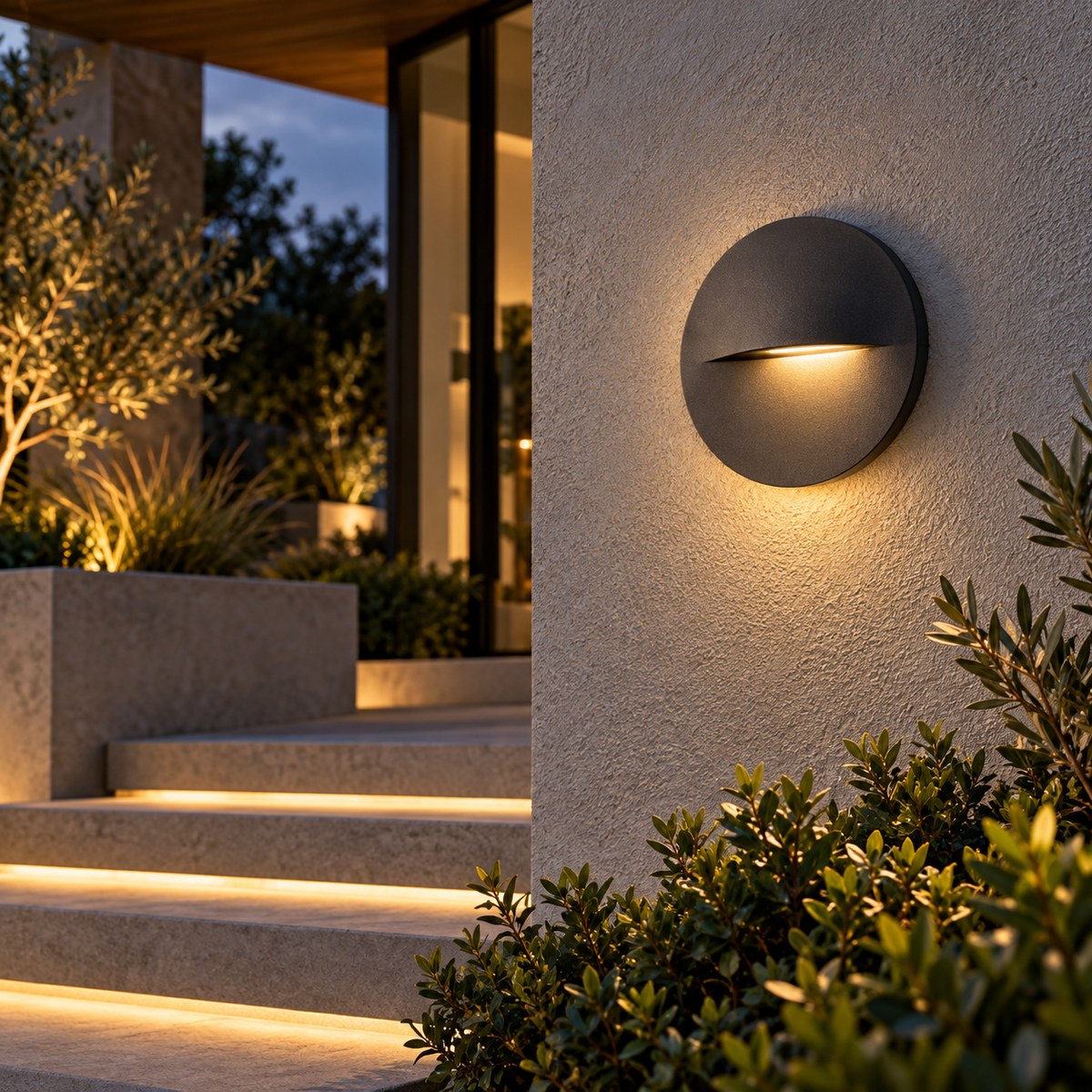

Low-level wall accents, outdoor steps and circulation areas.
Finish Options
RAL 7024 Graphite Grey; RAL 8016 Mahogany Brown; RAL 9003 Signal White; RAL 9005 Jet Black; RAL 9006 White Aluminium. Availability and custom finishes subject to confirmation.
For drawings, finishes, and project quotations, please contact BTR. Specifications are based on catalogue information and should be verified before final specification.
