BT55065 Square LED Outdoor Slot Wall Light
Model: BT55065

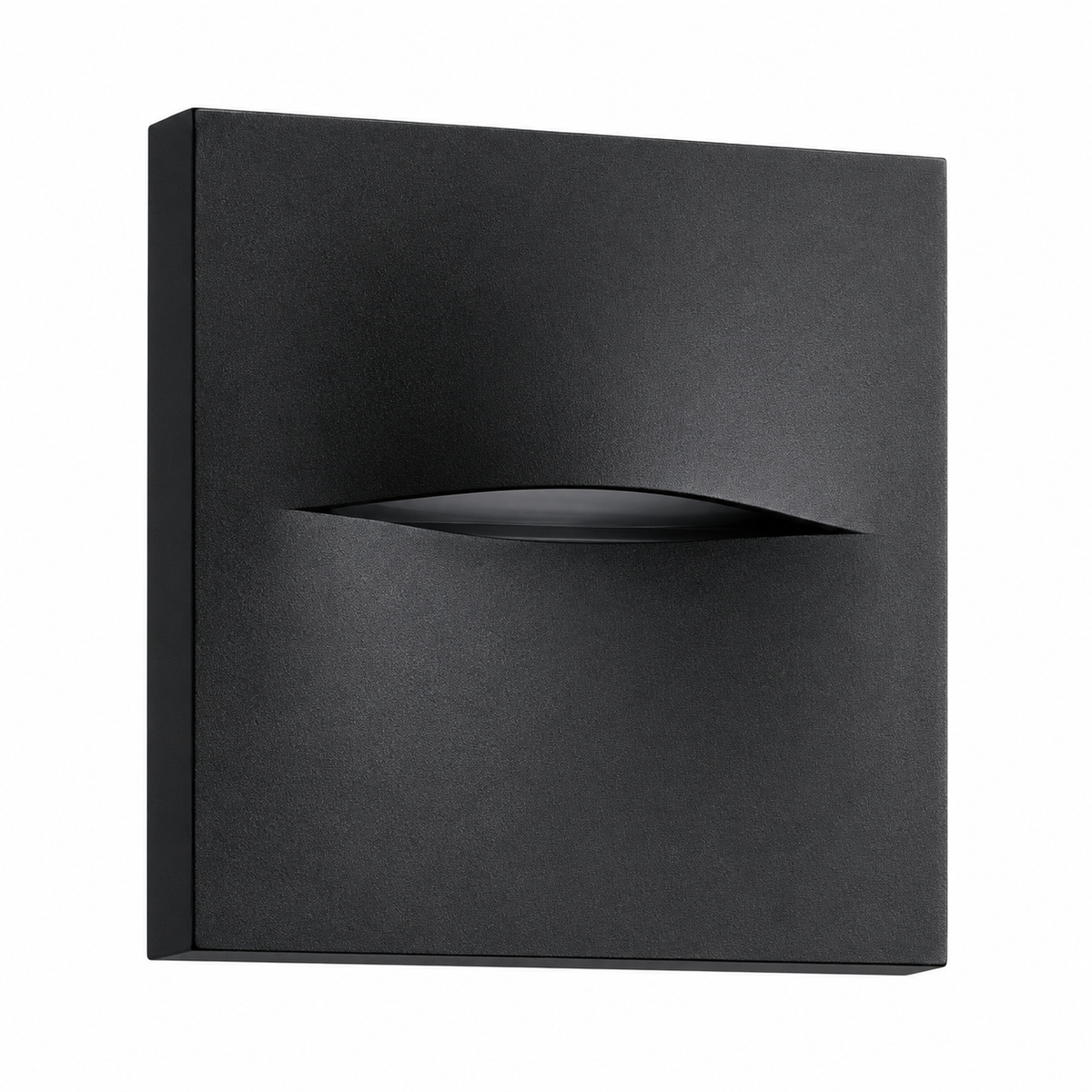

The BT55065 is a square exterior LED wall light defined by a fine horizontal light slot. With a compact aluminium and opal PC construction, it suits contemporary spaces where discreet low-level lighting is preferred.
Key Features
- Geometric square profile with a slim light aperture.
- Housing and diffuser: Aluminium body; opal PC diffuser
- Rated input: AC 220–240V, 50/60Hz
- Powder-coated finish; colour customization indicated in catalogue
- Protection rating: IP65
Technical Specifications
| Model | BT55065 |
|---|---|
| Rated power | 3W |
| Total luminous flux | 60 lm |
| Colour temperature | 3000K |
| LED source | SMD LED |
| Input voltage | AC 220–240V, 50/60Hz |
| Housing / diffuser | Aluminium body; opal PC diffuser |
| Protection rating | IP65 |
| Safety class | Class I |
| Product dimensions | 140 × 140 × 35 mm |
Applications

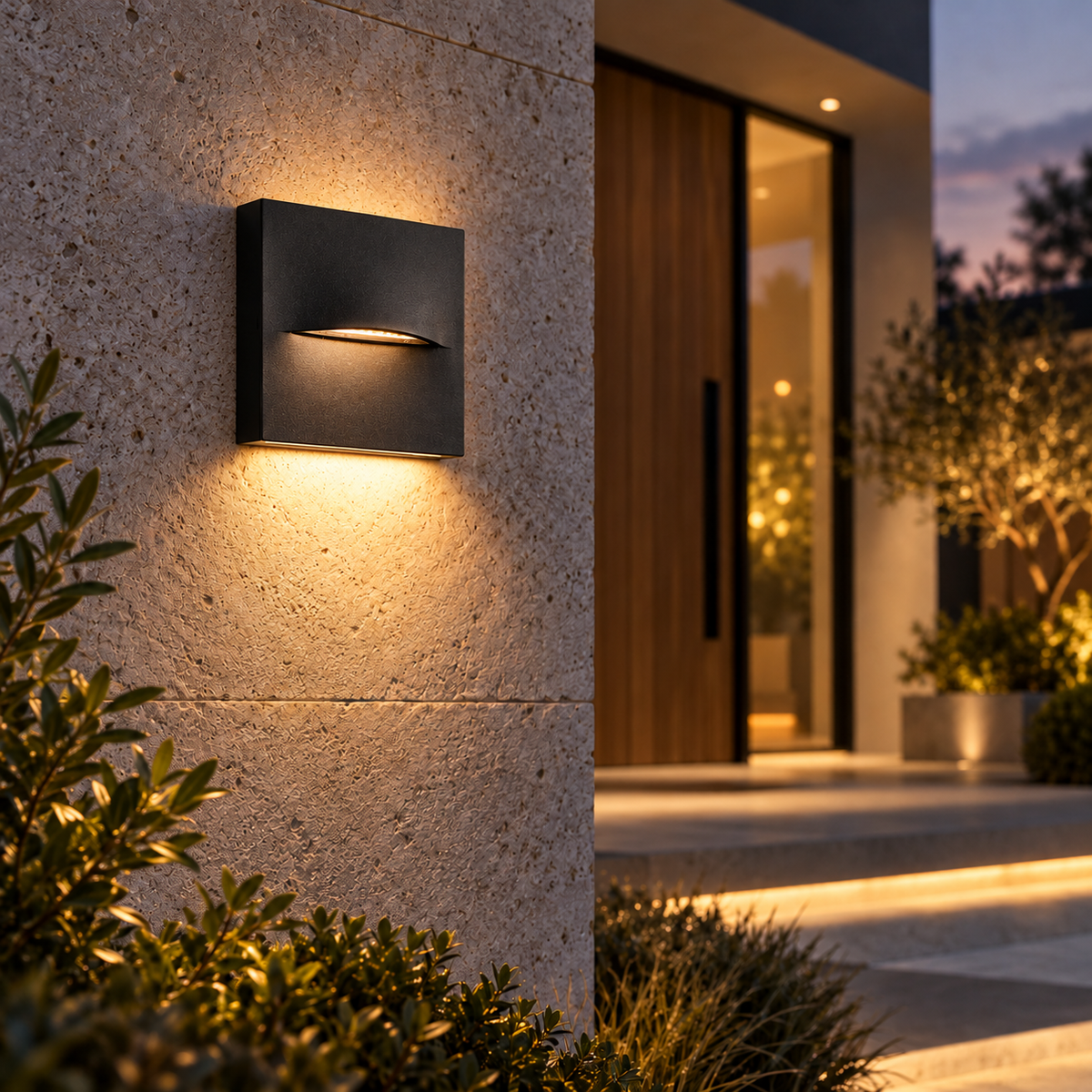

Garden boundary walls, walkways and architectural accents.
Finish Options
RAL 7024 Graphite Grey; RAL 8016 Mahogany Brown; RAL 9003 Signal White; RAL 9005 Jet Black; RAL 9006 White Aluminium. Availability and custom finishes subject to confirmation.
For drawings, finishes, and project quotations, please contact BTR. Specifications are based on catalogue information and should be verified before final specification.
