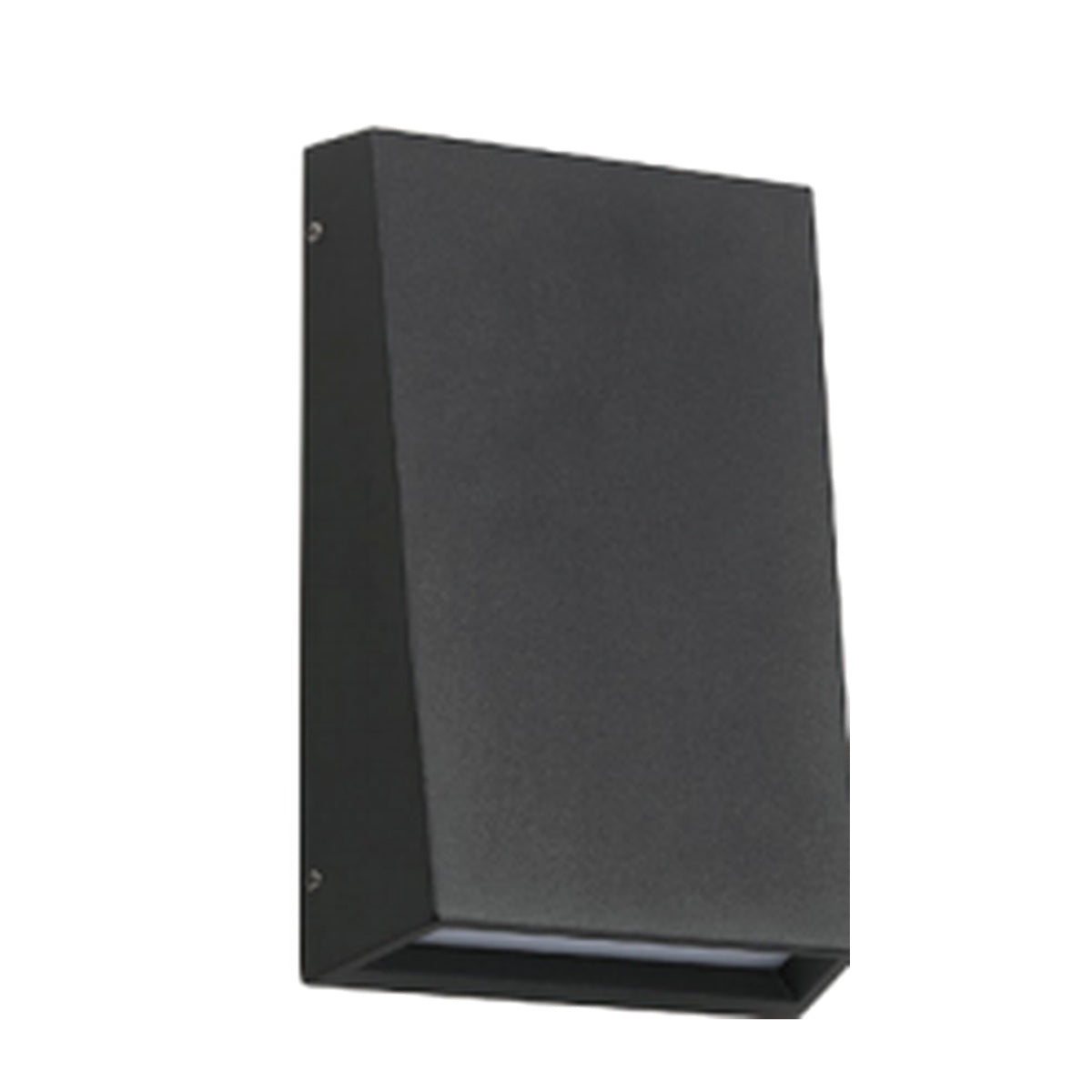

BT55171 Vertical Outdoor LED Wall Light
Model: BT55171
A slim vertical architectural wall luminaire with a gently angled front face and discreet downward illumination.
The compact aluminum housing and opal polycarbonate diffuser create a restrained finish suited to contemporary exterior architecture.
Key Features
- Aluminum housing; opal PC diffuser
- Powder-coated; custom colors available
- Architectural geometric profile
- Opal PC diffuser
- Available finish colors subject to project requirements
Applications
- Building entrances
- residential façades
- garden walls
Technical Specifications
| Model | BT55171 |
|---|---|
| Rated power | 10W |
| Light source | SMD LED |
| Luminous flux | 300 lm |
| Color temperature | 3000K |
| Dimensions (catalog, verify before publication) | Approx. 123 × 201 × 61 mm |
| Housing / diffuser | Aluminum housing; opal PC diffuser |
| Input voltage | 220–240V AC, 50/60Hz |
| Ingress protection | IP54 |
| Safety class | Class I |
Specifications are based on the product catalog. Confirm configuration, mounting details, and approvals before ordering.
