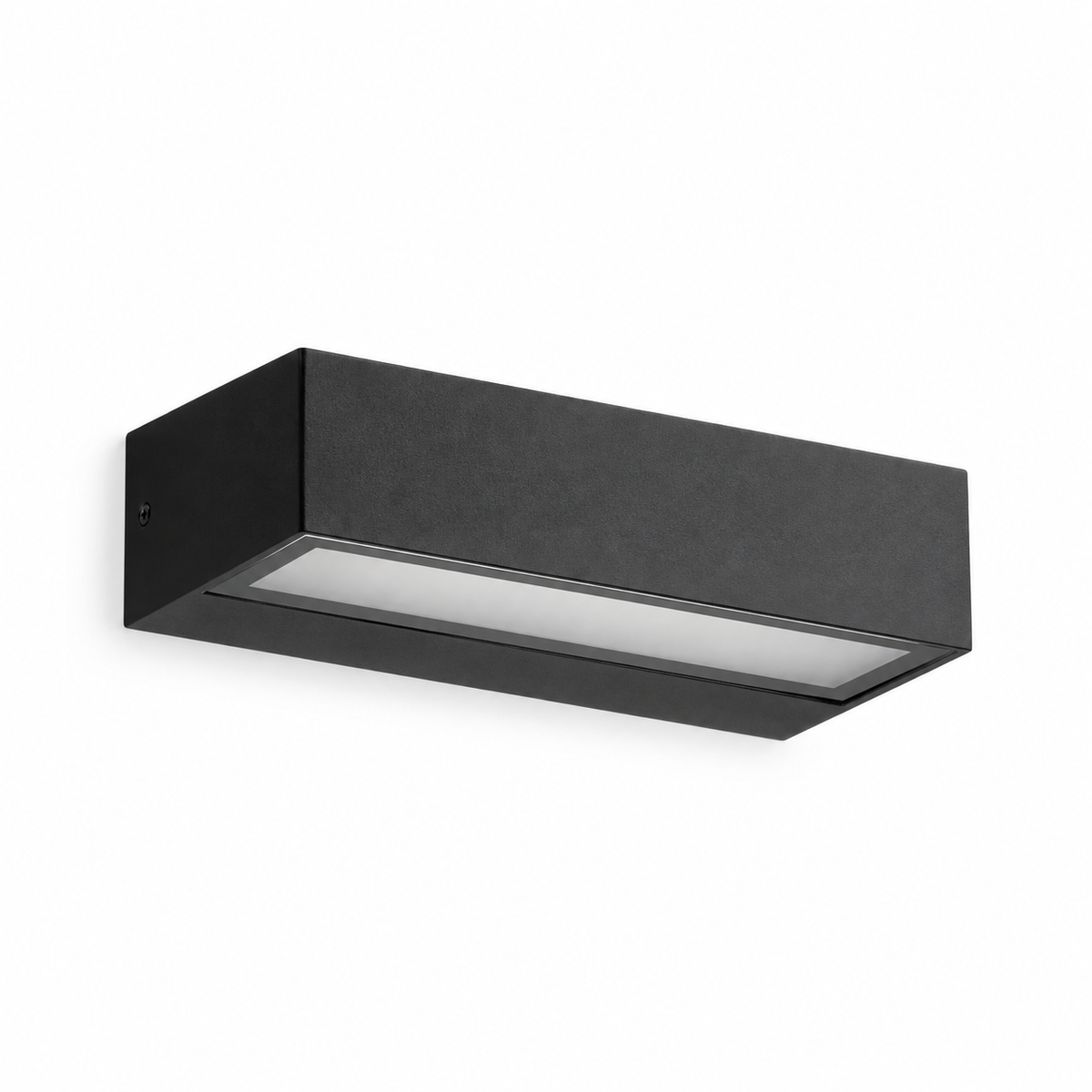

BT55585 Compact Linear Outdoor Wall Light
Model: BT55585
The BT55585 is a compact linear LED wall light with a slender powder-coated aluminium housing. A clear glass panel and 3000K warm white output make it a discreet choice for contemporary exterior walls.
Key Features
- Compact 162 mm body with simple architectural lines.
- Housing and diffuser: Aluminium housing; clear glass diffuser
- Rated input: AC 220–240V, 50/60Hz
- Powder-coated finish; colour customization indicated in catalogue
- Protection rating: IP54
Technical Specifications
| Model | BT55585 |
|---|---|
| Rated power | 6W |
| Total luminous flux | 325 lm |
| Colour temperature | 3000K |
| LED source | SMD LED |
| Input voltage | AC 220–240V, 50/60Hz |
| Housing / diffuser | Aluminium housing; clear glass diffuser |
| Protection rating | IP54 |
| Safety class | Class I |
| Product dimensions | 162 × 72 × 38 mm |
Applications

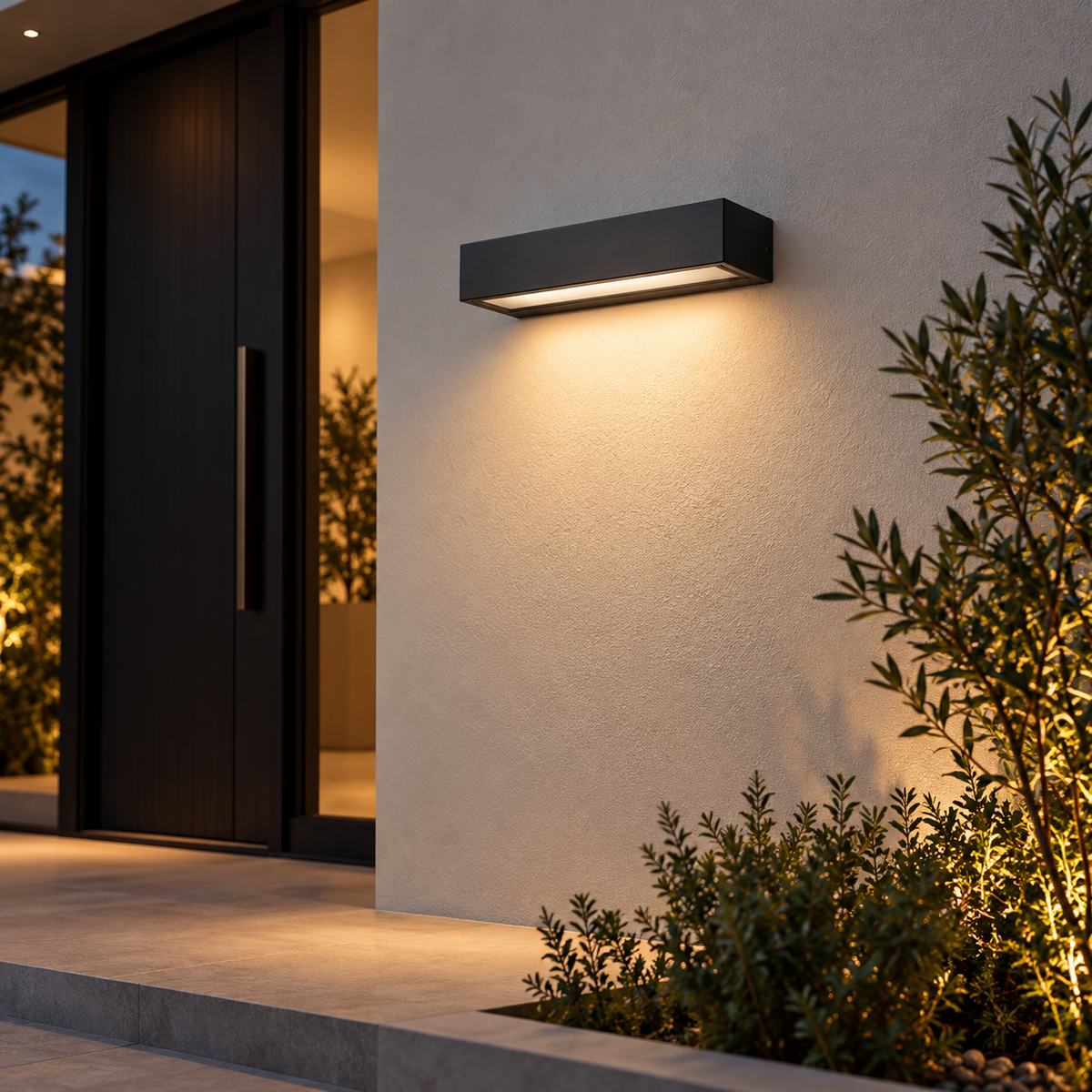

Residential entrances, garden walls and hospitality exteriors.
Finish Options
RAL 7024 Graphite Grey; RAL 8016 Mahogany Brown; RAL 9003 Signal White; RAL 9005 Jet Black; RAL 9006 White Aluminium. Availability and custom finishes subject to confirmation.
For drawings, finishes, and project quotations, please contact BTR. Specifications are based on catalogue information and should be verified before final specification.
