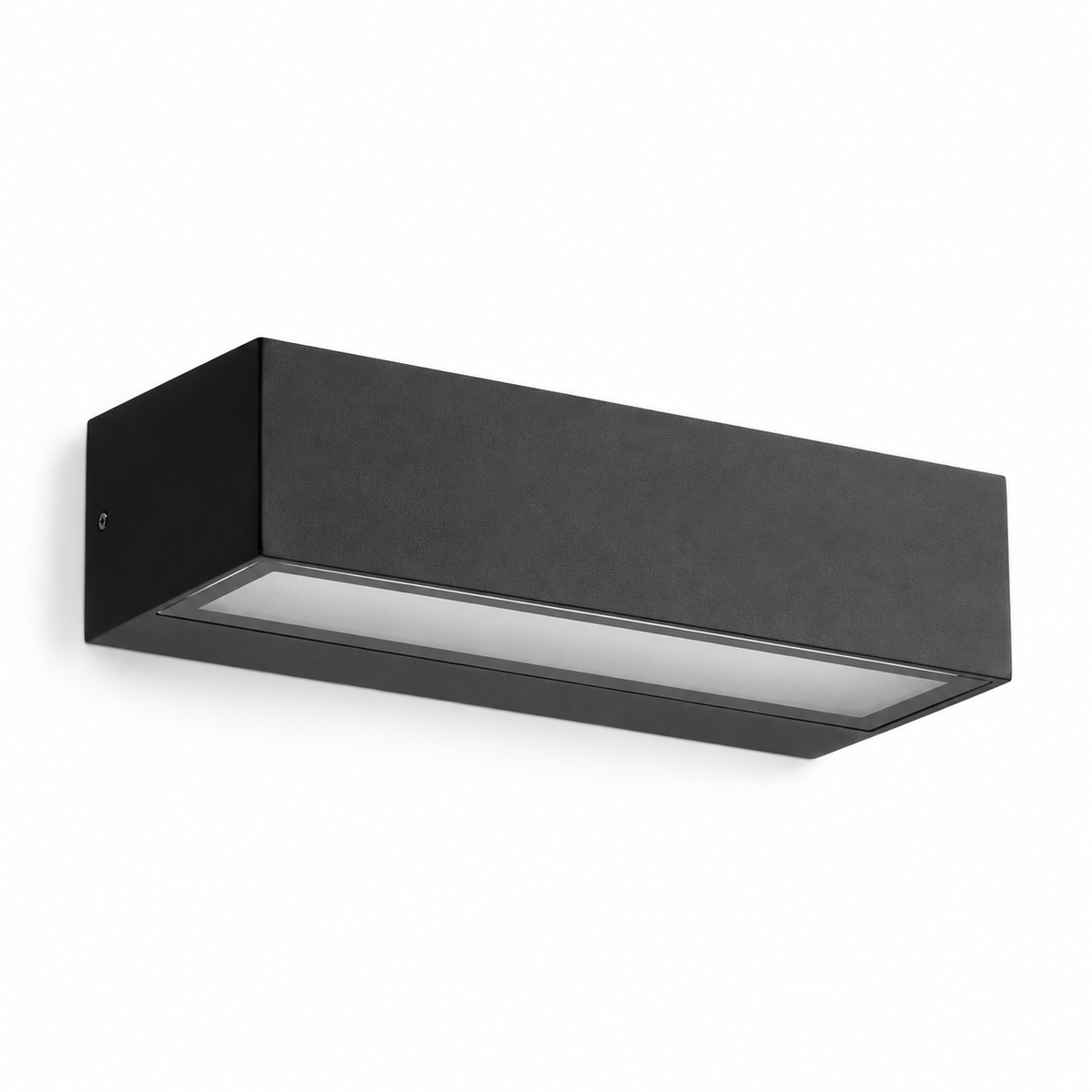

BT55586 Dual Compact Outdoor Wall Light
Model: BT55586
The BT55586 builds on the compact linear wall light format with a deeper casing and two 6W light modules. The durable aluminium housing and clear glass shade offer a restrained exterior architectural appearance.
Key Features
- Dual-light design in a compact aluminium profile.
- Housing and diffuser: Aluminium housing; clear glass diffuser
- Rated input: AC 220–240V, 50/60Hz
- Powder-coated finish; colour customization indicated in catalogue
- Protection rating: IP54
Technical Specifications
| Model | BT55586 |
|---|---|
| Rated power | 2 × 6W |
| Total luminous flux | 700 lm |
| Colour temperature | 3000K |
| LED source | SMD LED |
| Input voltage | AC 220–240V, 50/60Hz |
| Housing / diffuser | Aluminium housing; clear glass diffuser |
| Protection rating | IP54 |
| Safety class | Class I |
| Product dimensions | 162 × 72 × 52 mm |
Applications

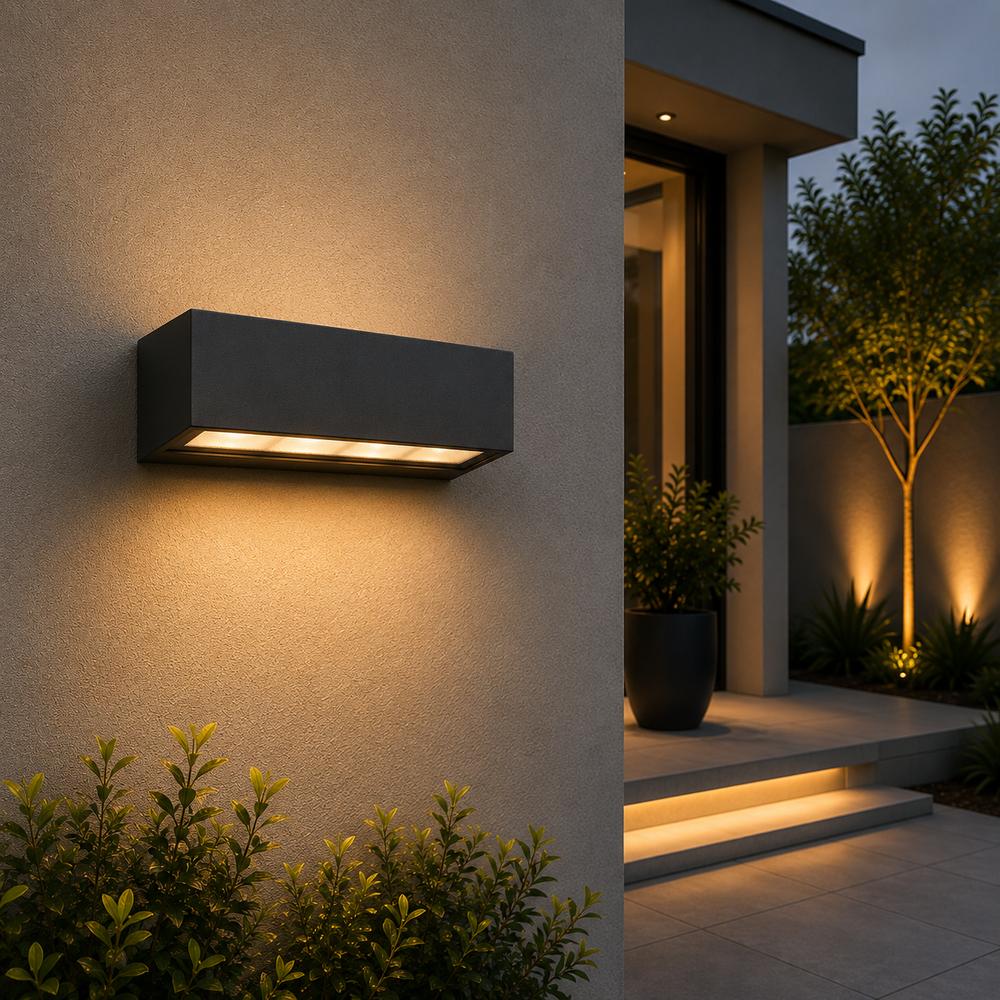

Modern building exteriors, entrances and wall lighting.
Finish Options
RAL 7024 Graphite Grey; RAL 8016 Mahogany Brown; RAL 9003 Signal White; RAL 9005 Jet Black; RAL 9006 White Aluminium. Availability and custom finishes subject to confirmation.
For drawings, finishes, and project quotations, please contact BTR. Specifications are based on catalogue information and should be verified before final specification.
