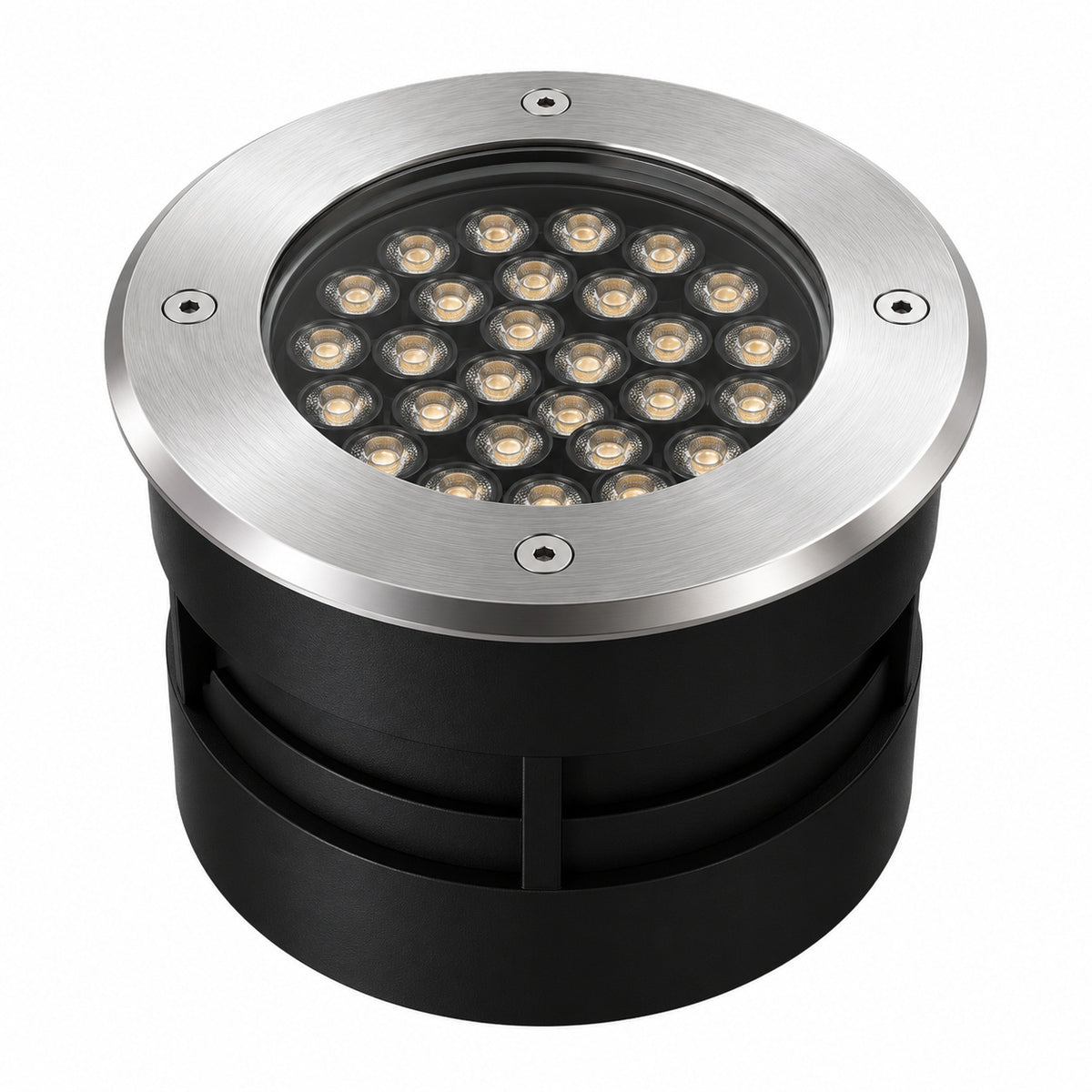

BT7708-200 Underground Light | 36W IP68
Model: BT7708-200
Recessed underground light with 316 stainless steel panel and die-cast housing, designed for courtyards, buildings, sculptures and other outdoor embedded lighting applications.
Applications
Suitable for courtyards, grasslands, buildings, sculptures, billboards and embedded floor / wall applications.
Product Features
- ADC12 die-cast aluminum housing with 316 stainless steel panel.
- Secondary optical lens light distribution with 10 mm tempered glass.
- Waterproof embedded construction for floor, wall or ground installation.
- High-strength outdoor design with anti-corrosion components.
- ON-OFF or DMX512 control available depending on configuration.
Technical Specifications
| Model | BT7708-200 |
|---|---|
| Product Type | Underground Light |
| Power | 36W |
| Light Source | LED / 18 pcs |
| Input Voltage | DC 24V / AC 220V |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 15° / 30° / 45° / 60° / 120° |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP68 |
| Working Temperature | -25° to 50° |
| Net Weight | 2.0 kg |
| Package Specification | 200 × 200 × 100 mm |
Catalogue-based data. Please confirm final configuration, voltage, beam angle and control details before ordering.
