ALL PRODUCTS / Underground Light
BTR / OUTDOOR LUMINAIRES
Request a Quote ↗

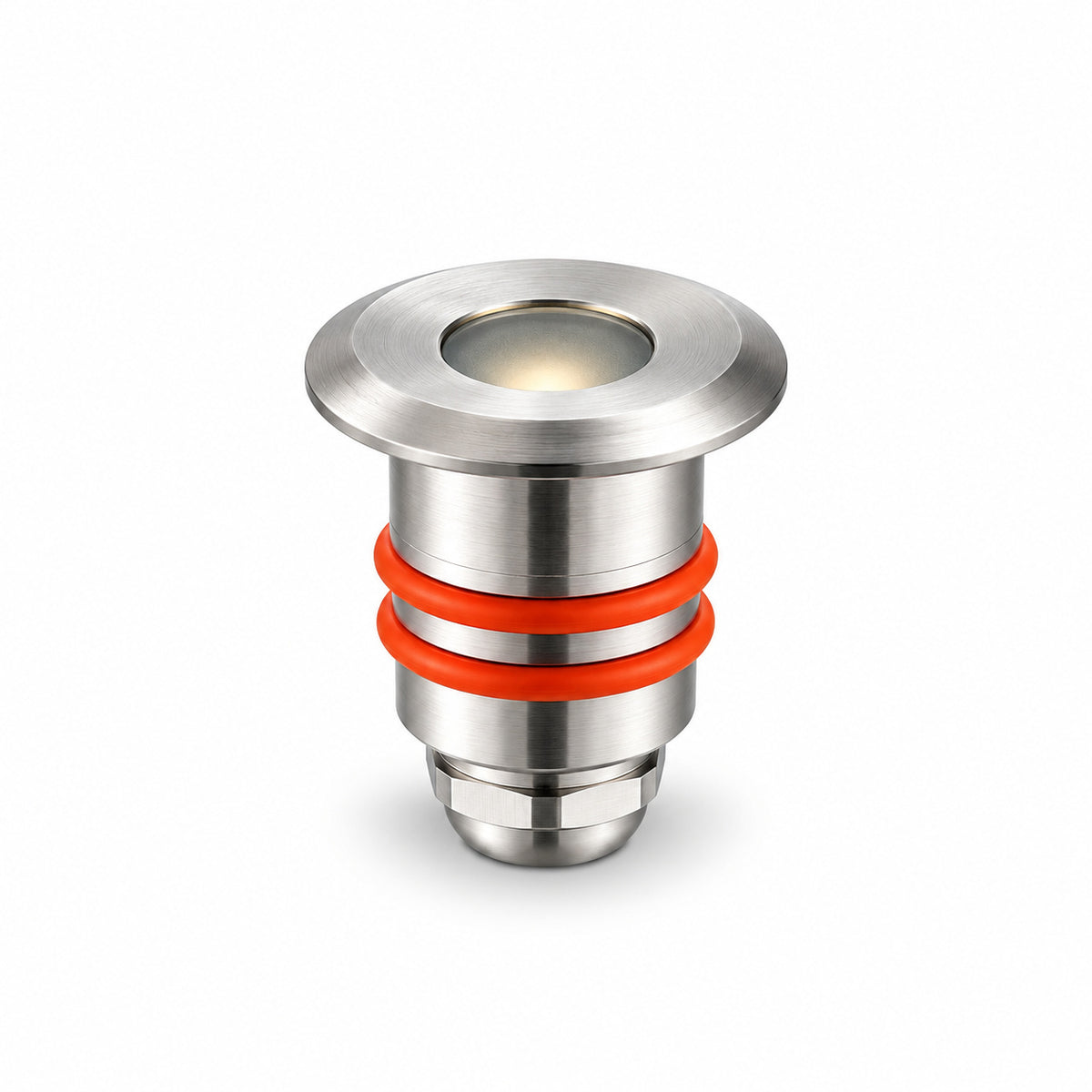

BT7711-52A Underground Light | 2W IP68
Model: BT7711-52A
Compact embedded underground light with SUS316L stainless steel body and panel, suitable for architectural, landscape and accent lighting.
Applications
Suitable for courtyards, grasslands, buildings, sculptures, billboards and other embedded lighting applications.
Product Features
- SUS316L stainless steel lamp body and panel for durable outdoor use.
- Secondary optical lens with tempered glass protection.
- Embedded installation for floor, wall and landscape applications.
- High waterproof performance with IP68 protection grade.
- Available in ON-OFF or DMX512 control depending on model.
Technical Specifications
| Model | BT7711-52A |
|---|---|
| Product Type | Underground Light |
| Power | 2W |
| Light Source | LED / 1 pcs |
| Input Voltage | DC 12V / DC 24V / AC 220V |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 15° / 30° / 45° / 60° / 120° |
| Control Mode | ON-OFF / DMX512 |
| Product Size | 78 × 68 × 103 mm |
| IP Rating | IP68 |
| Working Temperature | -25° to 50° |
Catalogue-based data. Please confirm final configuration, voltage, beam angle and control details before ordering.
