ALL PRODUCTS / In-ground Luminaire
BTR / OUTDOOR LUMINAIRES
Request a Quote ↗

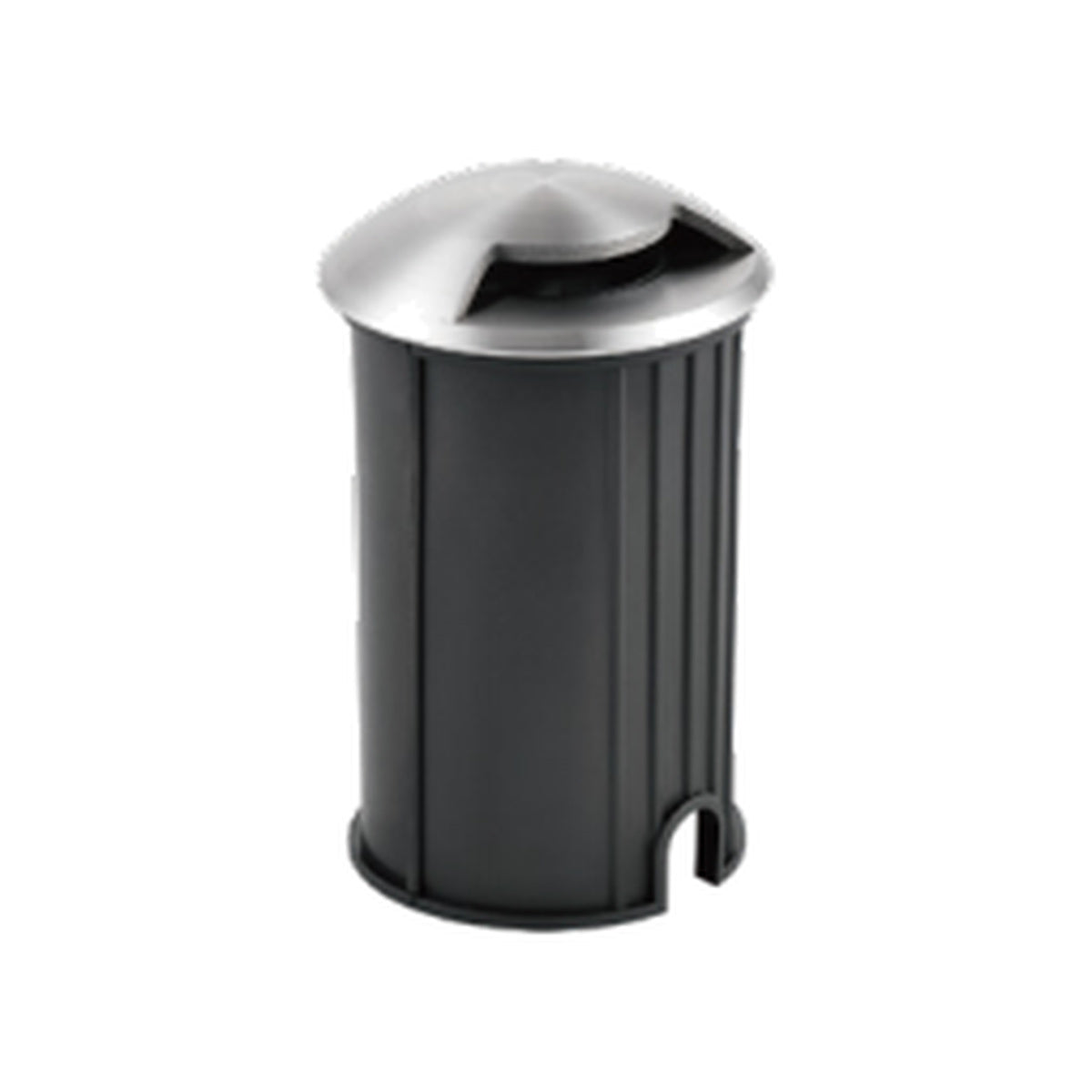

BT7711-62C Stainless Steel In-Ground LED Light | 5W IP67
Model: BT7711-62C
A compact IP67 in-ground LED luminaire featuring a formed directional top shield. The stainless steel cover and tempered glass are designed for discreet architectural accent lighting in paving, pathways and landscape hardscapes.
Key Features
- Stainless steel 316 cover and stainless steel 304 body
- Tempered glass optical protection
- 220 lm catalogue luminous flux with warm white 3000K LED output
- IP67 protection for outdoor ground-level installation
- Natural stainless steel finish
- Multiple optical cover designs available within the same family
Applications
- Architectural paving
- Pathways and walkways
- Landscape hardscapes
- Exterior ground-level accent lighting
Technical Specifications
| Model | BT7711-62C |
|---|---|
| Product Type | In-ground Luminaire |
| Power | 5W |
| Light Source | 1 × LED |
| Luminous Flux | 220 lm |
| Color Temperature | 3000K |
| Body Material | Stainless steel 304 |
| Cover Material | Stainless steel 316 |
| Glass | Tempered glass |
| Finish | Natural stainless steel |
| Nominal Cover Diameter | Ø62 mm |
| Input Voltage | 220–240V AC / 12V DC (configuration-dependent) |
| IP Rating | IP67 |
| Safety Class | Class I / Class III (configuration-dependent) |
Voltage and safety class depend on the selected electrical configuration. Please confirm installation details before ordering.
