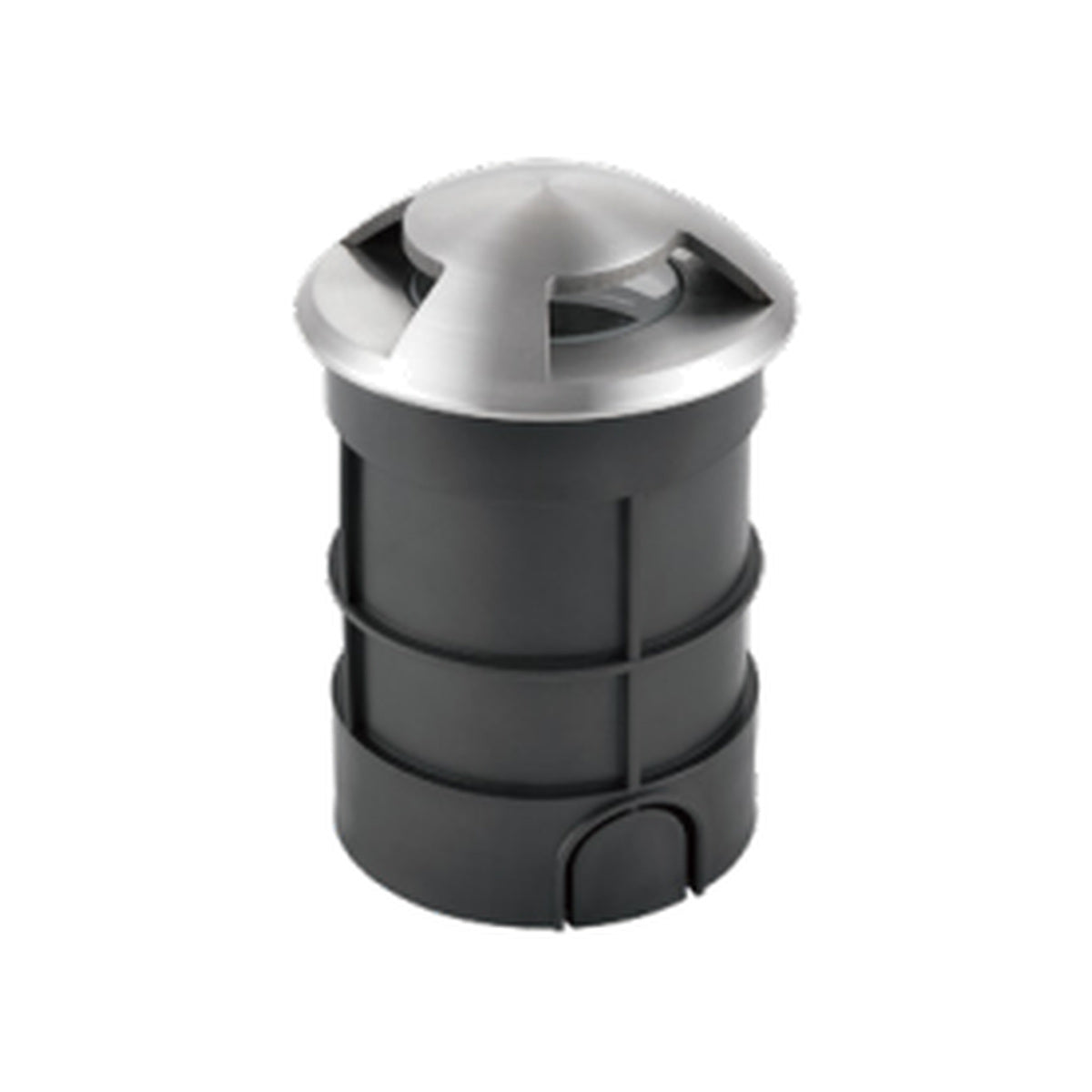

BT7711-75E Stainless Steel In-Ground LED Light | 5W IP67
Model: BT7711-75E
A compact IP67 in-ground LED luminaire featuring a multi-opening stainless steel top cover. The stainless steel cover and tempered glass are designed for discreet architectural accent lighting in paving, pathways and landscape hardscapes.
Key Features
- Stainless steel 316 cover and stainless steel 304 body
- Tempered glass optical protection
- 250 lm catalogue luminous flux with warm white 3000K LED output
- IP67 protection for outdoor ground-level installation
- Natural stainless steel finish
- Multiple optical cover designs available within the same family
Applications
- Architectural paving
- Pathways and walkways
- Landscape hardscapes
- Exterior ground-level accent lighting
Technical Specifications
| Model | BT7711-75E |
|---|---|
| Product Type | In-ground Luminaire |
| Power | 5W |
| Light Source | 3 × LED |
| Luminous Flux | 250 lm |
| Color Temperature | 3000K |
| Body Material | Stainless steel 304 |
| Cover Material | Stainless steel 316 |
| Glass | Tempered glass |
| Finish | Natural stainless steel |
| Nominal Cover Diameter | Ø75 mm |
| Input Voltage | 220–240V AC / 12V DC (configuration-dependent) |
| IP Rating | IP67 |
| Safety Class | Class I / Class III (configuration-dependent) |
Voltage and safety class depend on the selected electrical configuration. Please confirm installation details before ordering.
