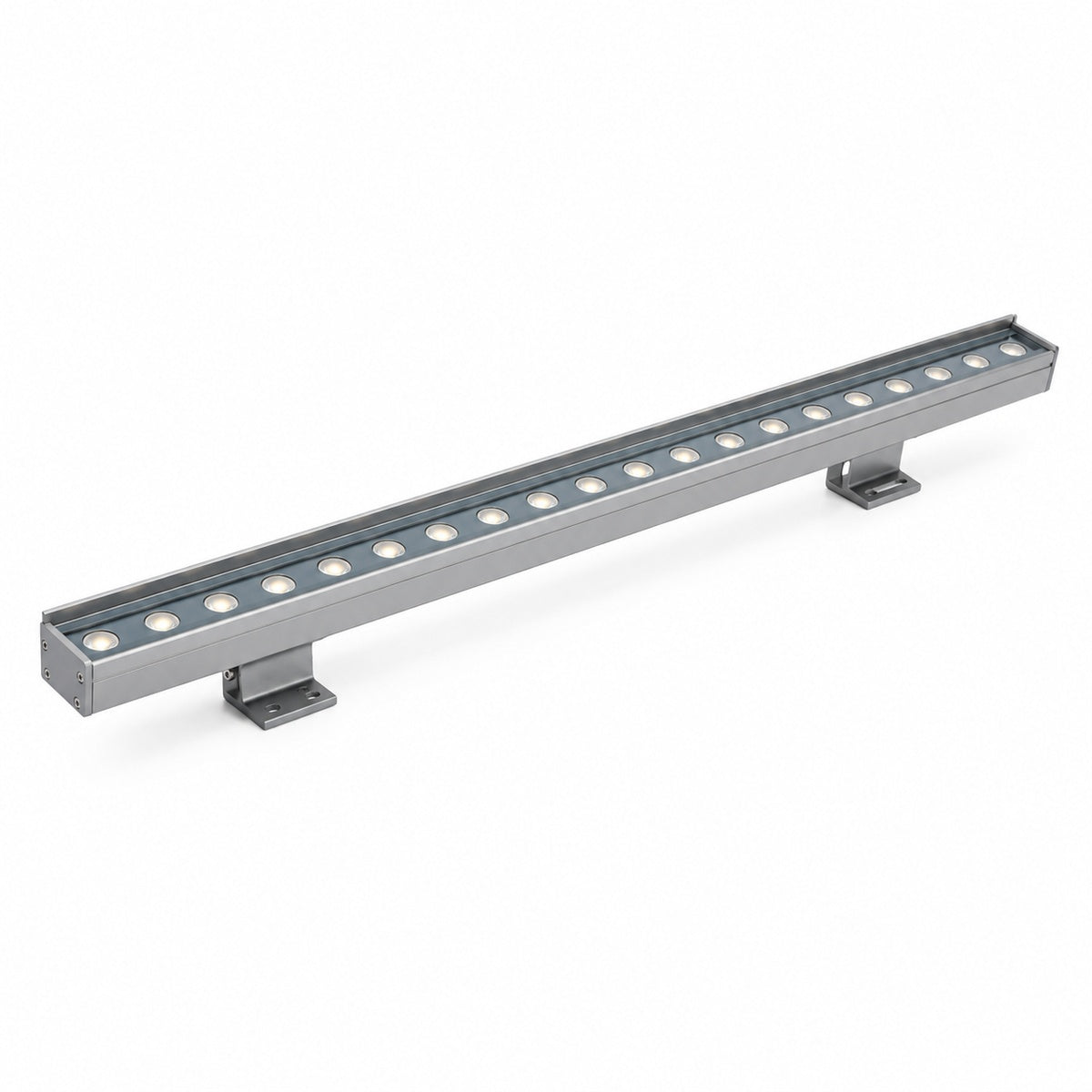

BT9231 Linear LED Wall Washer | 48W IP66

Model: BT9231

BT9231 is a professional outdoor linear wall washer designed for architectural lighting. Linear wall washer with multiple beam options and optional DMX512 control. The robust construction combines 6063 aluminum alloy body + adc12 die-cast end cap + tempered glass for dependable long-term exterior use.

Key Features

48W rated power with led / 24 pcs
3000K / 4000K / 5700K / RGBW options
15° / 30° / 45° / 15×50° beam angle options
ON-OFF or optional DMX512 control
IP66 protection for exterior architectural applications
Anodized or electrostatic spray, customizable color
Industrial coupler / bracket mounting design for easy installation

Applications

Buildings, bridges, rivers and architectural facade lighting.

Technical Specifications

Model	BT9231
Product Type	Linear Wall Washer
Power	48W
Light Source	LED / 24 pcs
Luminous Flux	Not specified
Color Temperature	3000K / 4000K / 5700K / RGBW
Beam Angle	15° / 30° / 45° / 15×50°
Material	6063 aluminum alloy body + ADC12 die-cast end cap + tempered glass
Input Voltage	DC 24V / AC 220V
Control Mode	ON-OFF / DMX512
IP Rating	IP66
Net Weight	1.9 kg
Package Specification	65×70×1010 mm
Outside Box	1030×215×230 mm / 9 pcs

Catalogue-based data. Please confirm beam angle, control version, voltage and installation details before ordering.
