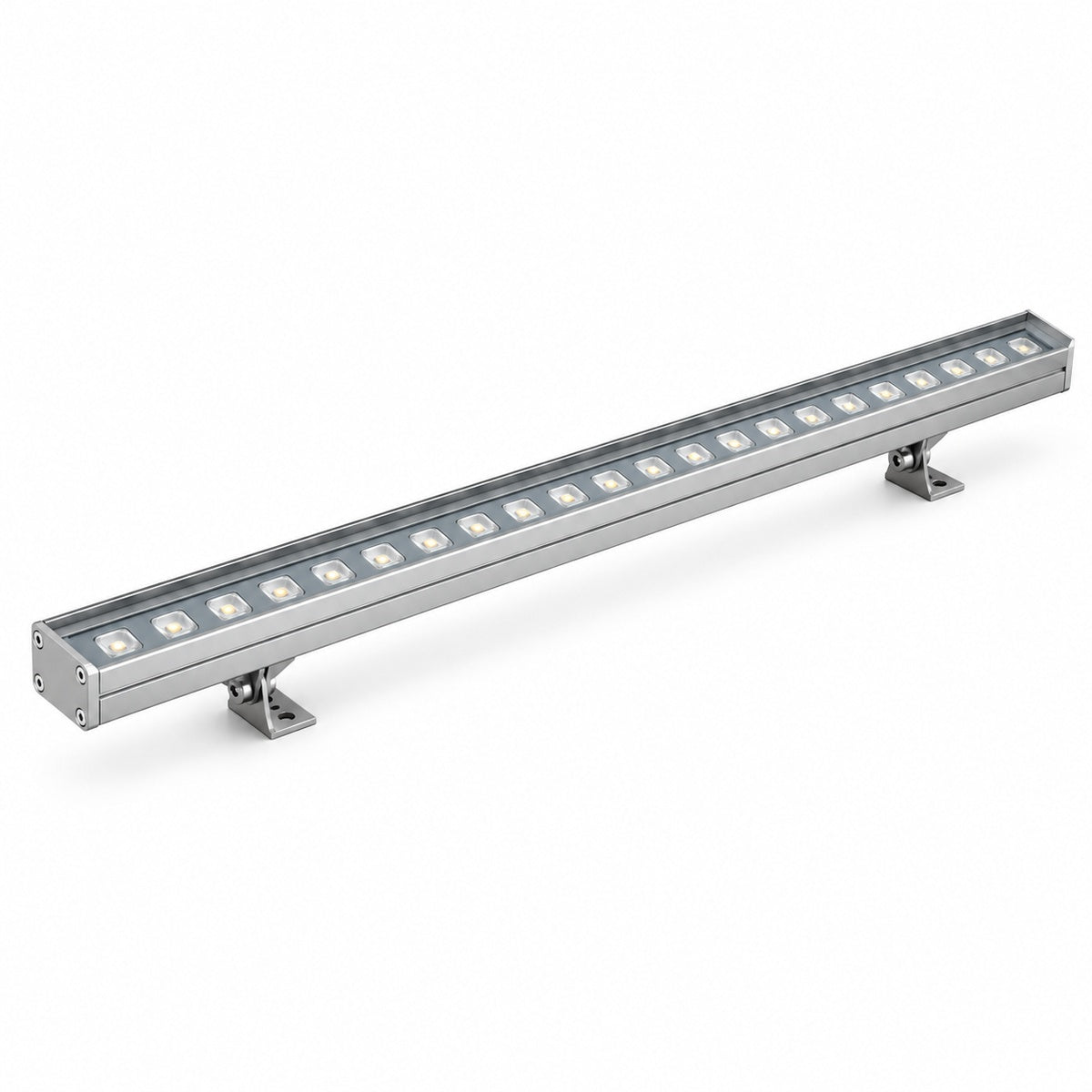

BT9234A Linear Wall Washer | 12W IP66

Model: BT9234A

Slim linear wall washer with decorative cover design, industrial coupler connection and adjustable aluminum mounting bracket for architectural exterior lighting.

Applications

Buildings, bridges, rivers, landscape features and other architectural lighting projects.

Technical Specifications

Model	BT9234A
Product Type	Linear Wall Washer
Power	12W
Light Source	LED / 48 pcs
Color Temperature	3000K / 4000K / 5700K
Beam Angle	100°
Material	6063 aluminum alloy lamp body + aluminum sheet metal end cap
Input Voltage	DC 24V
Control Mode	ON-OFF
IP Rating	IP66
Net Weight	0.6 kg
Package Specification	60×50×1010 mm
Outside Box Specifications / Quantity	1040×330×280 mm / 25 pcs
Working Temperature	-25°C to 50°C
Variant Note	Standard mounting bracket version

Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
