BT9234B Linear Wall Washer | 12W IP66
Model: BT9234B

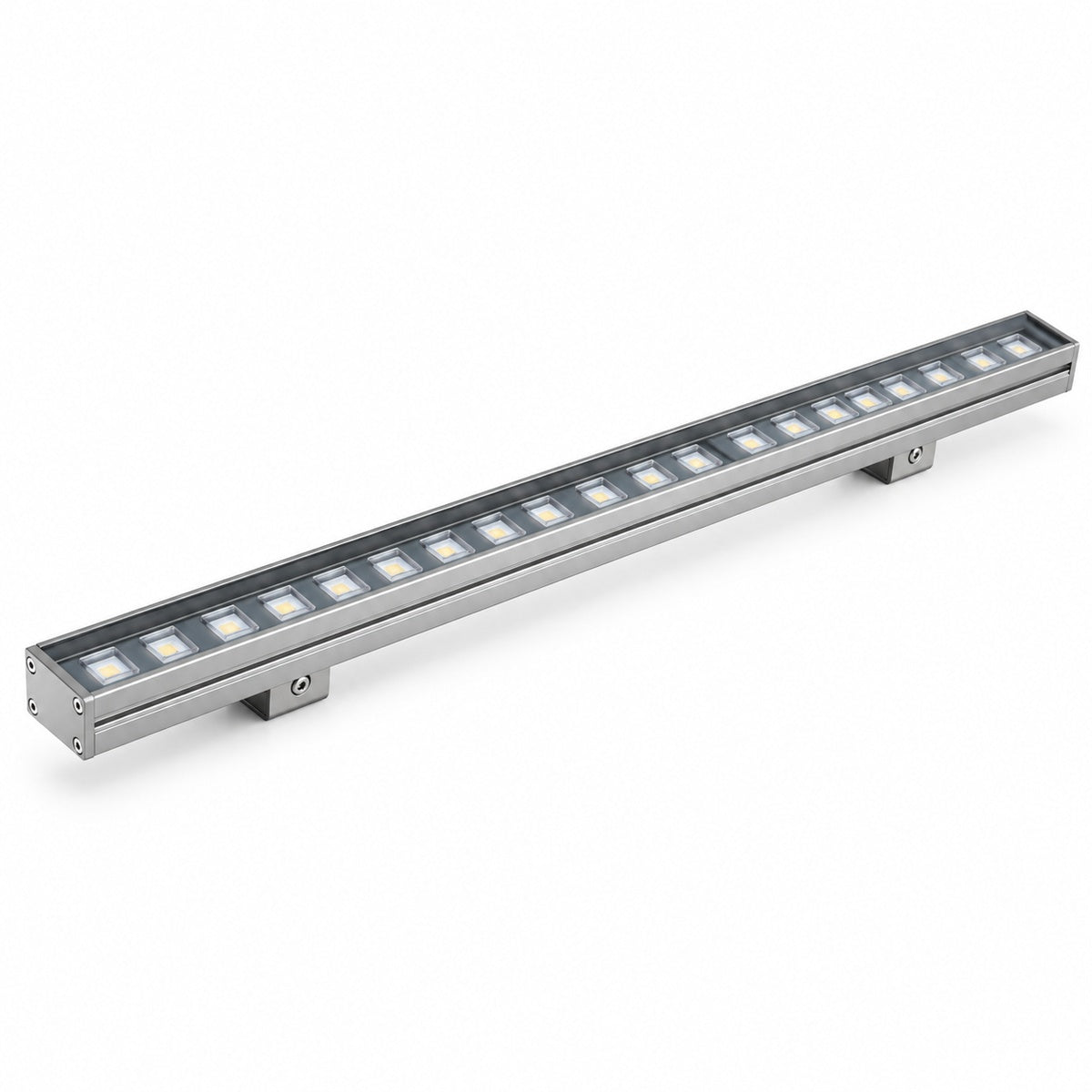

Slim linear wall washer with low-profile mounting brackets, decorative cover design and broad 100° beam for building, bridge and river lighting.
Applications
Buildings, bridges, rivers, landscape features and other architectural lighting projects.
Technical Specifications
| Model | BT9234B |
|---|---|
| Product Type | Linear Wall Washer |
| Power | 12W |
| Light Source | LED / 48 pcs |
| Color Temperature | 3000K / 4000K / 5700K |
| Beam Angle | 100° |
| Material | 6063 aluminum alloy lamp body + aluminum sheet metal end cap |
| Input Voltage | DC 24V |
| Control Mode | ON-OFF |
| IP Rating | IP66 |
| Net Weight | 0.6 kg |
| Package Specification | 60×50×1010 mm |
| Outside Box Specifications / Quantity | 1040×330×280 mm / 25 pcs |
| Working Temperature | -25°C to 50°C |
| Variant Note | Low-profile mounting version |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
