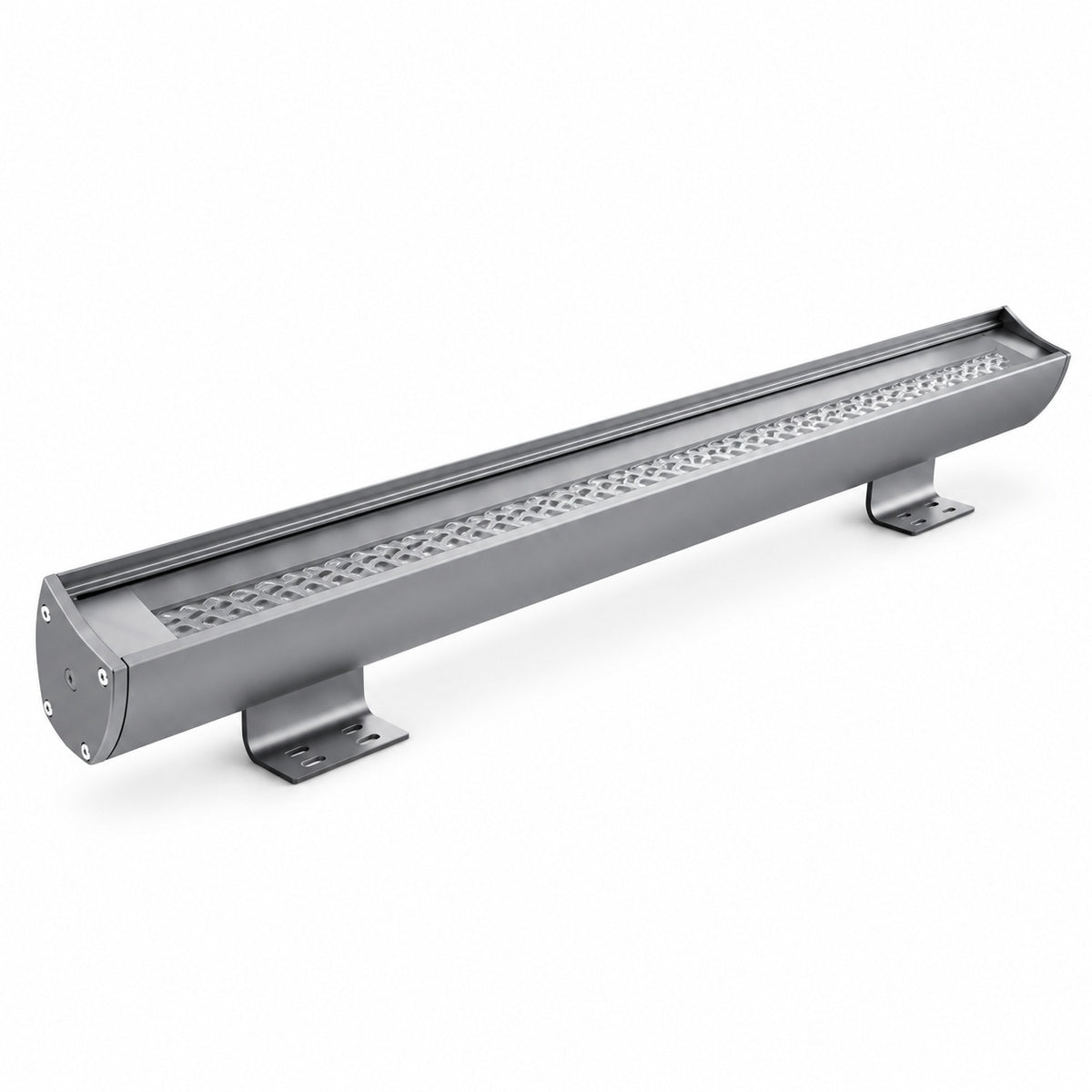

BT9246 Dynamic Ripple Linear Wall Washer | 90W IP66

Model: BT9246

BT9246 is a professional outdoor linear wall washer designed for architectural lighting. Patented dynamic water-ripple wall washer with motorized optical effect and optional DMX512 control. The robust construction combines 6063 aluminum alloy body + adc12 die-cast end cap + tempered glass for dependable long-term exterior use.

Key Features

90W rated power with led / 36 pcs
Blue / White dynamic effect options
45° beam angle options
Dynamic water-ripple effect with 3W motor and adjustable speed 1.5–4.0 rpm
IP66 protection for exterior architectural applications
Anodized or electrostatic spray, customizable color
Industrial coupler / bracket mounting design for easy installation

Applications

Buildings, bridges, rivers and decorative architectural lighting with moving water-ripple effect.

Technical Specifications

Model	BT9246
Product Type	Linear Wall Washer
Power	90W
Light Source	LED / 36 pcs
Luminous Flux	Not specified
Color Temperature	Blue / White dynamic effect
Beam Angle	45°
Material	6063 aluminum alloy body + ADC12 die-cast end cap + tempered glass
Input Voltage	DC 24V / AC 220V
Control Mode	ON-OFF / DMX512
Lighting Effect	Dynamic water-ripple effect
Motor Speed	1.5–4.0 rpm
Motor Power	3W motor
IP Rating	IP66
Net Weight	6.1 kg
Package Specification	140×100×1020 mm
Outside Box	1050×300×230 mm / 4 pcs

Catalogue-based data. Please confirm beam angle, control version, voltage and installation details before ordering.
