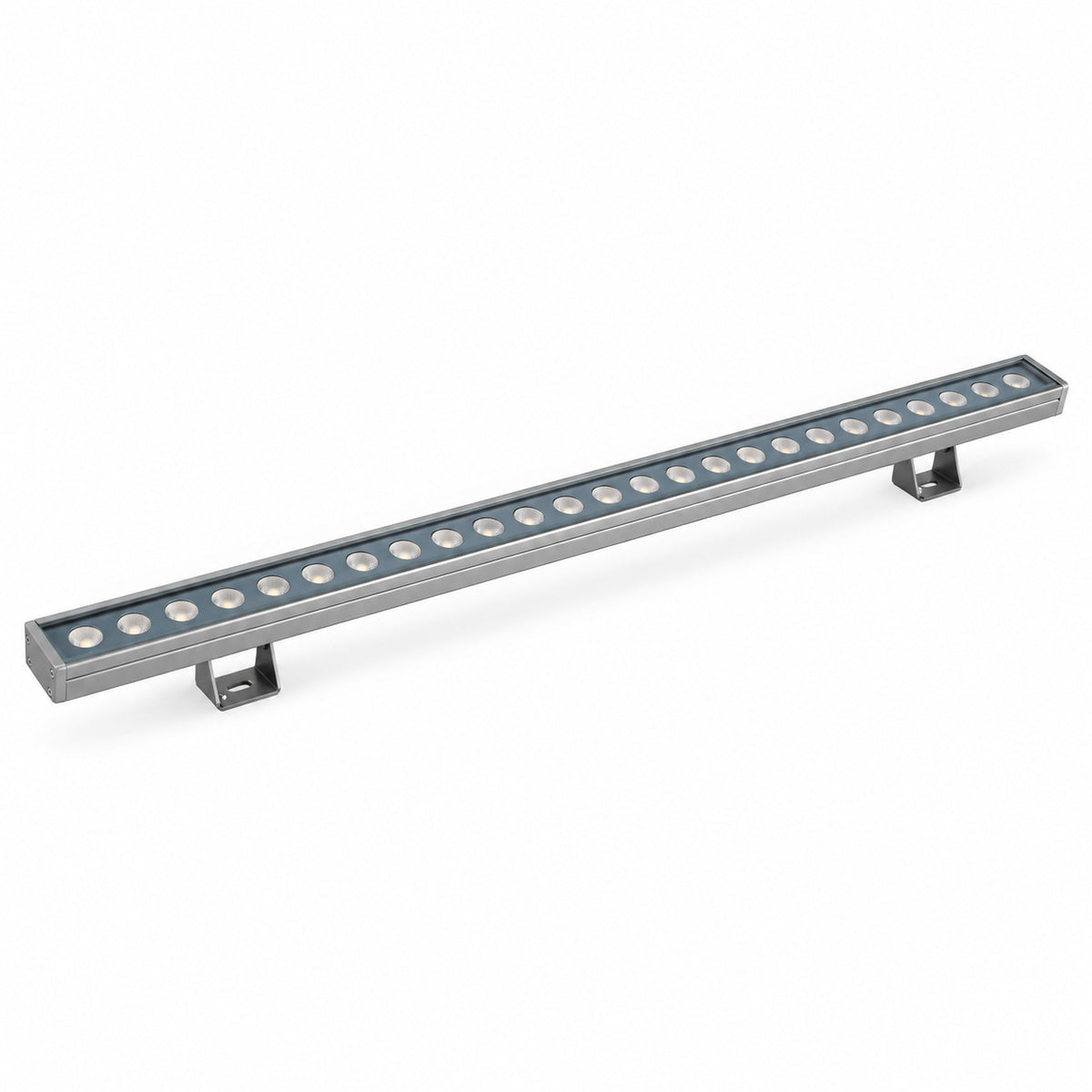

BT9258D Linear LED Wall Washer | 36W IP66

Model: BT9258D

BT9258D is a professional outdoor linear wall washer designed for architectural lighting. D-version compact linear wall washer with streamlined body and concealed optics. The robust construction combines 6063 aluminum alloy body + adc12 die-cast end cap + tempered glass for dependable long-term exterior use.

Key Features

36W rated power with led / 36 pcs
3000K / 4000K / 5700K options
25° / 45° / 20×45° beam angle options
ON-OFF control
IP66 protection for exterior architectural applications
Anodized or electrostatic spray, customizable color
Industrial coupler / bracket mounting design for easy installation

Applications

Buildings, bridges, rivers and architectural facade lighting.

Technical Specifications

Model	BT9258D
Product Type	Linear Wall Washer
Power	36W
Light Source	LED / 36 pcs
Luminous Flux	Not specified
Color Temperature	3000K / 4000K / 5700K
Beam Angle	25° / 45° / 20×45°
Material	6063 aluminum alloy body + ADC12 die-cast end cap + tempered glass
Input Voltage	DC 24V / AC 220V
Control Mode	ON-OFF
IP Rating	IP66
Net Weight	1.2 kg
Package Specification	50×55×1010 mm
Outside Box	1030×185×180 mm / 9 pcs

Catalogue-based data. Please confirm beam angle, control version, voltage and installation details before ordering.
