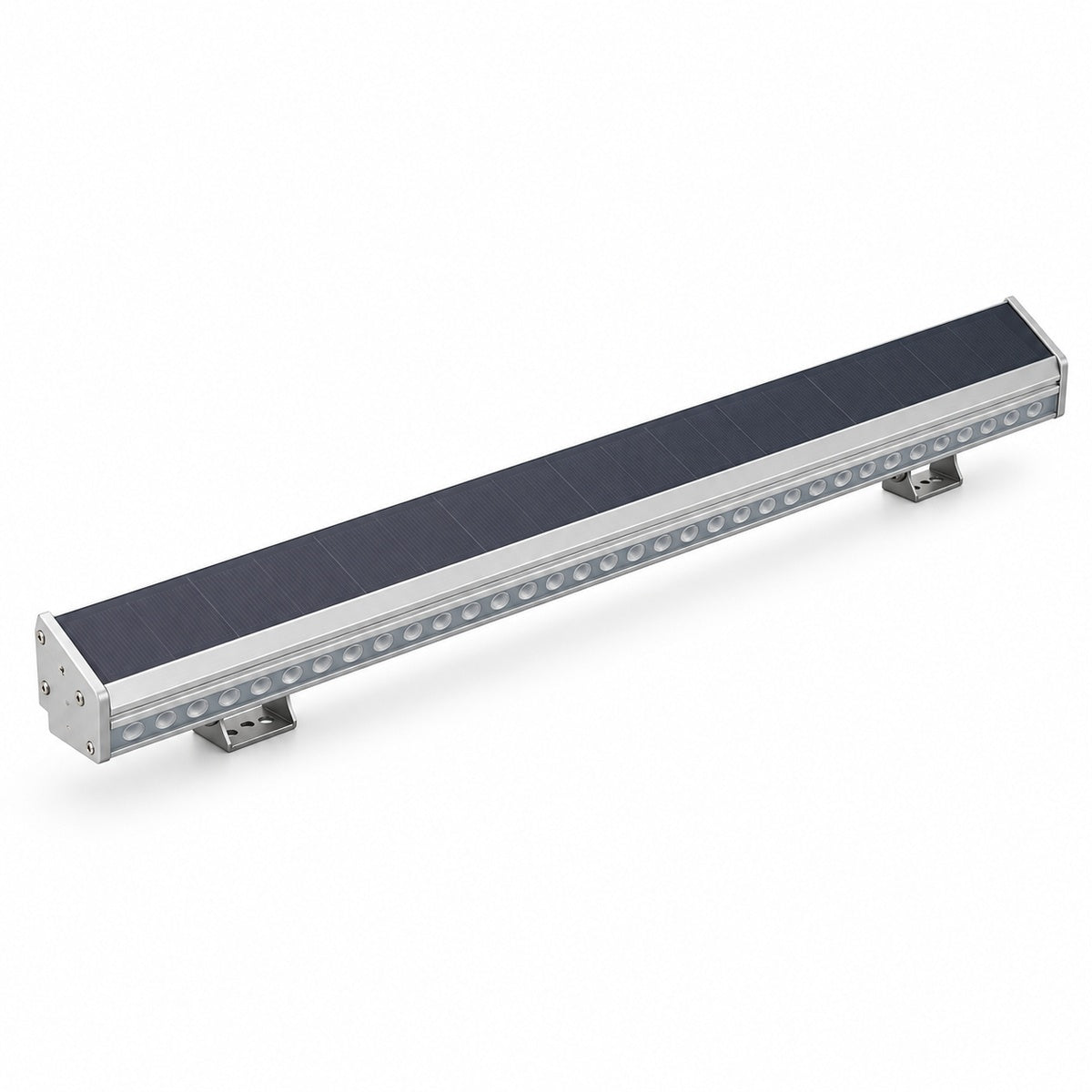

BT9273-SOLAR Solar Linear Wall Washer | 12W IP66

Model: BT9273-SOLAR

Solar-powered linear wall washer with integrated single-crystal laminated solar panel, anodized aluminum body and tempered glass optics for architectural exterior lighting.

Applications

Buildings, bridges, rivers, landscape features and other architectural lighting projects.

Technical Specifications

Model	BT9273-SOLAR
Product Type	Solar Linear Wall Washer
Power	12W
Light Source	LED / 48 pcs
Color Temperature	3000K / 4000K / 5700K / RGB
Beam Angle	15° / 30° / 45° / 25×40°
Material	6063 aluminum alloy profile lamp body + tempered glass + laminated single-crystal solar panel
Input Voltage	DC 15V
Control Mode	Light control + dimming
IP Rating	IP66
Net Weight	3.0 kg
Package Specification	125×70×1020 mm
Outside Box Specifications / Quantity	1050×270×160 mm / 4 pcs
Photovoltaic Specifications	1000mA 15V 15W
Battery Specifications	11.5V 5.2A
Working Hours	5 h
Working Temperature	-10°C to 50°C

Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
