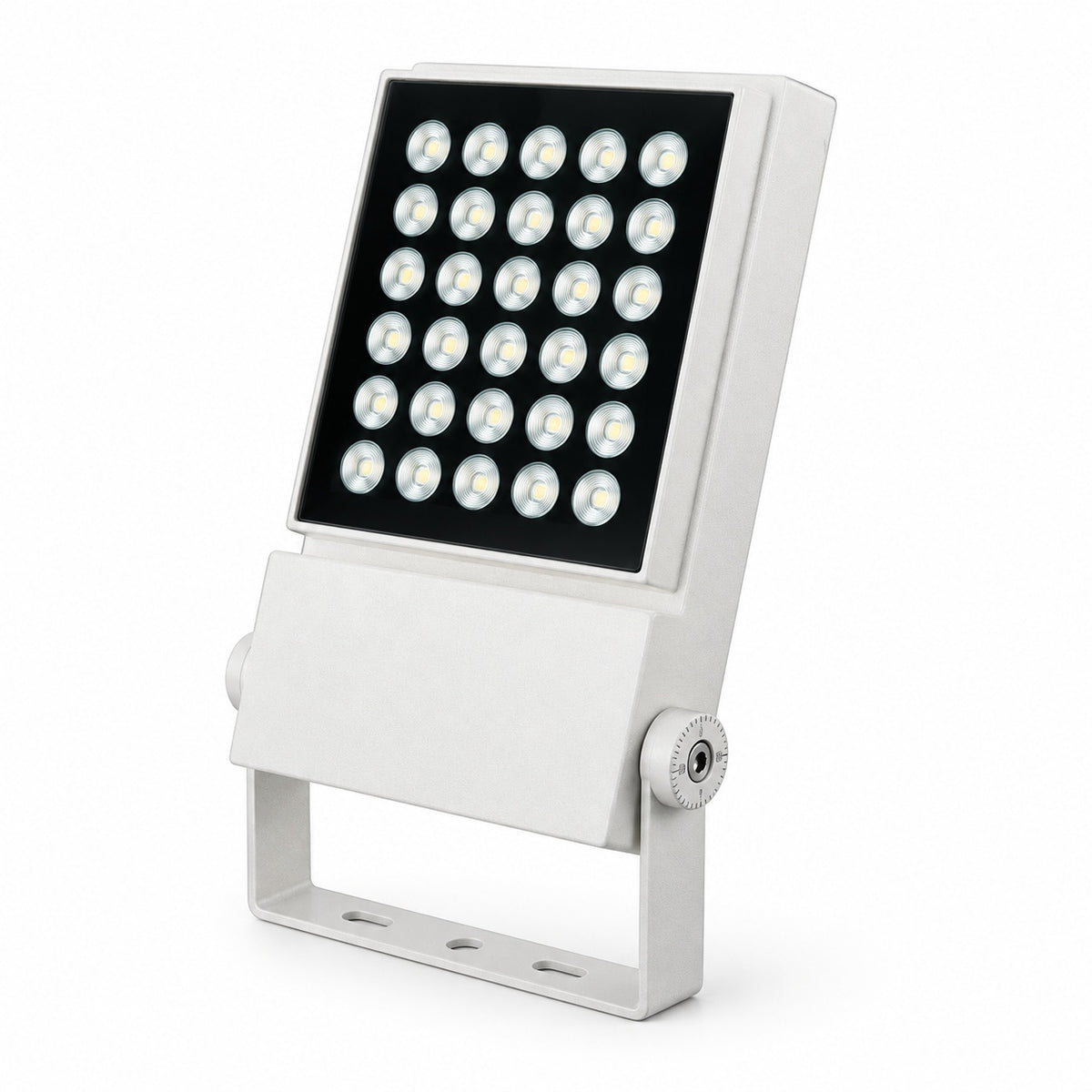

F0075 Flood Light | 60W IP66
Model: F0075
Rectangular outdoor flood light with 30 LED lenses, adjustable yoke bracket and DMX512 option for landscape and facade lighting.
Applications
Lawn, garden, park and building illumination.
Product Features
- ADC12 die-cast aluminum body with electrostatic spray finish; color can be customized.
- Tempered glass optical protection with adjustable optics for architectural exterior lighting.
- Waterproof sealed silicone structural parts with IP66 protection grade.
- ON-OFF control; DMX512 external control optional on applicable configurations.
- Industrial outdoor construction suitable for landscape and facade illumination.
Technical Specifications
| Model | F0075 |
|---|---|
| Product Type | Flood Light |
| Mount Type | Adjustable yoke bracket |
| Power | 60W |
| Light Source | LED / 30 pcs |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 15° / 30° / 45° / 60° |
| Material | ADC12 die-cast aluminum body + tempered glass optics |
| Input Voltage | DC 24V / AC 220V |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP66 |
| Net Weight | 3.7 kg |
| Product Size | 186 × 52 × 336.5 mm; bracket width 217 mm |
| Package Specification | 430×235×125 mm |
| Outside Box Specifications / Quantity | 490×450×280 mm / 4 pcs |
| Working Temperature | -25°C to 50°C |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
