F0076 Flood Light | 120W IP66
Model: F0076

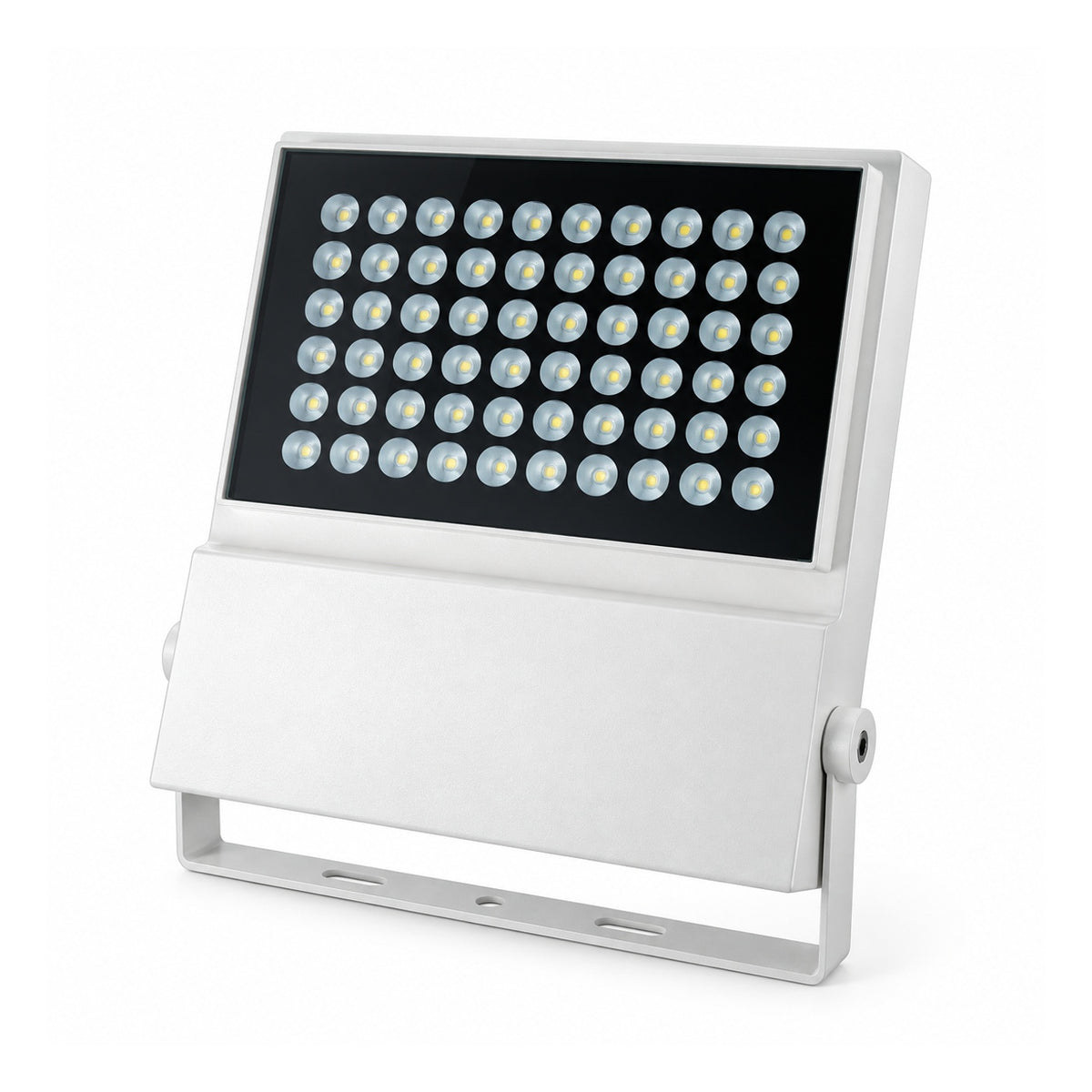

High-power rectangular outdoor flood light with 60 LED lenses, adjustable bracket and DMX512 option for architectural and landscape lighting.
Applications
Suitable places: Lawn, garden, park and building illumination.
Product Features
- ADC12 die-cast aluminum body with electrostatic spray finish; color can be customized.
- Tempered glass optics with multiple optional beam angles for façade and landscape lighting.
- Waterproof sealed structural design with IP66 protection grade.
- ON-OFF control; DMX512 control available on applicable configurations.
- Heavy-duty outdoor flood light for large-scale exterior illumination.
Technical Specifications
| Model | F0076 |
|---|---|
| Product Type | Flood Light |
| Power | 120W |
| Light Source | LED / 60 pcs |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 15° / 30° / 45° / 60° |
| Input Voltage | DC 24V / AC 220V |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP66 |
| Net Weight | 9.5 kg |
| Product Size | 345 × 70 × 406.5 mm; bracket width 376 mm |
| Package Specification | 515×405×140 mm |
| Outside Box Specifications / Quantity | 535×425×300 mm / 2 pcs |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
