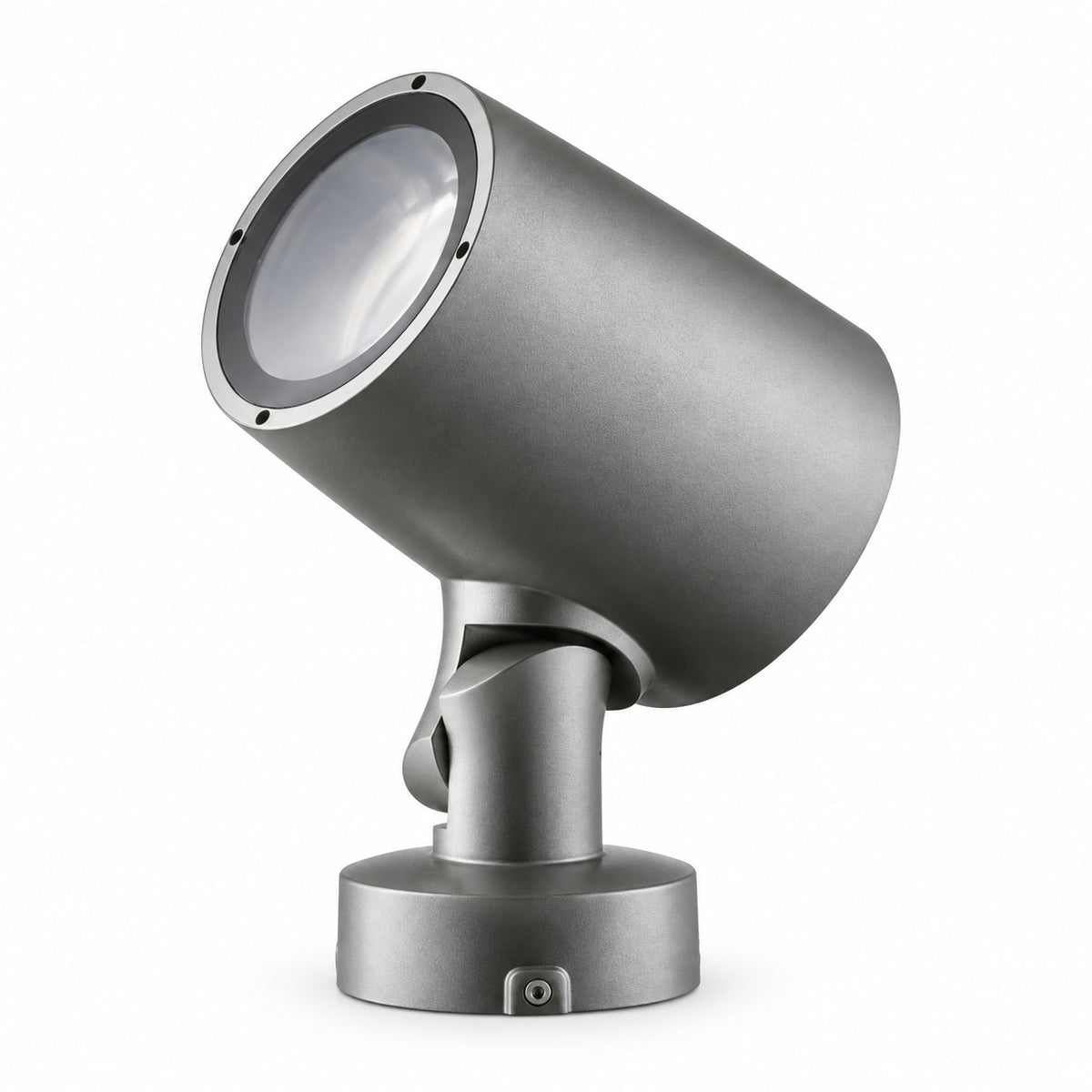

F0136A Flood Light | 60W IP66
Model: F0136A
Compact adjustable outdoor flood light with zoom optics and pedestal surface-mount base for architectural landscape lighting.
Applications
Lawn, garden, park and building illumination.
Product Features
- ADC12 die-cast aluminum body with electrostatic spray finish; color can be customized.
- Tempered glass optical protection with adjustable optics for architectural exterior lighting.
- Waterproof sealed silicone structural parts with IP66 protection grade.
- ON-OFF control; DMX512 external control optional on applicable configurations.
- Industrial outdoor construction suitable for landscape and facade illumination.
Technical Specifications
| Model | F0136A |
|---|---|
| Product Type | Flood Light |
| Mount Type | Surface / pedestal mount |
| Power | 60W |
| Light Source | LED / 1 pc |
| Color Temperature | 2700K-5700K / RGBW |
| Beam Angle | 15°-50° |
| Material | ADC12 die-cast aluminum body + tempered glass optics |
| Input Voltage | AC 220V |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP66 |
| Net Weight | 3.5 kg |
| Product Size | L195 × head Ø145 mm |
| Package Specification | 280×210×190 mm |
| Outside Box Specifications / Quantity | 440×300×410 mm / 4 pcs |
| Working Temperature | -25°C to 50°C |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
