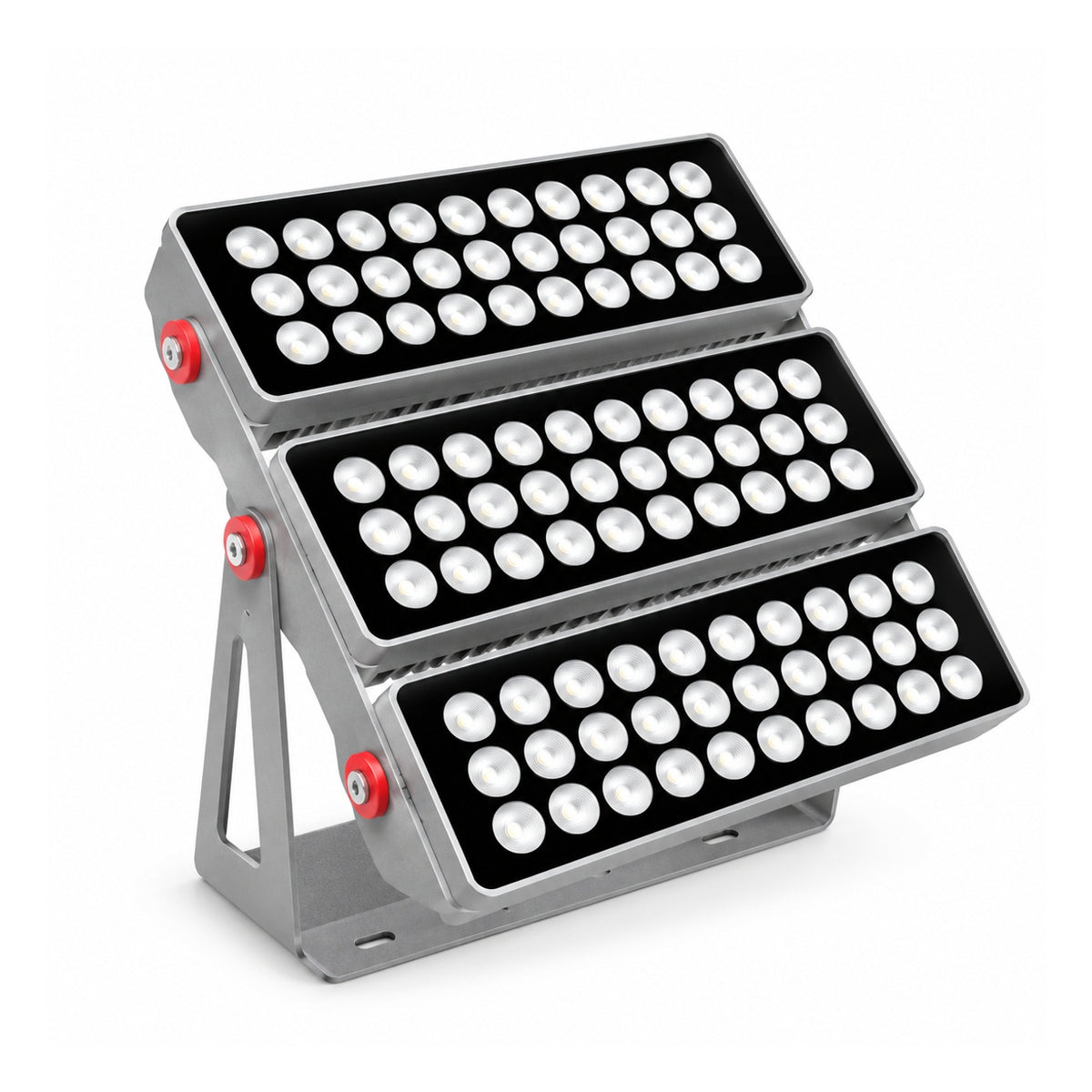

F0146-72 Flood Light | 150W IP66
Model: F0146-72
Modular multi-panel high-power LED flood light with free combination of 1/2/3 modules for large-scale architectural and feature lighting.
Applications
Suitable places: Buildings, sculptures, trees, columns and other outdoor architectural lighting applications.
Product Features
- ADC12 die-cast aluminum body with corrosion-resistant outdoor finish.
- Free combination modular system for 1, 2 or 3 panel configurations.
- Secondary optical lens distribution with a broad range of beam angles.
- ON-OFF / DMX512 control depending on selected configuration.
- IP66 waterproof protection for powerful outdoor façade lighting.
Technical Specifications
| Model | F0146-72 |
|---|---|
| Product Type | Flood Light |
| Power | 150W |
| Light Source | LED / 48PCS |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 3° / 10° / 15° / 30° / 45° / 60° / 90° |
| Input Voltage | DC 12V / DC 24V / AC 220V |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP66 |
| Product Size | 99 × 122 × 136 mm |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
