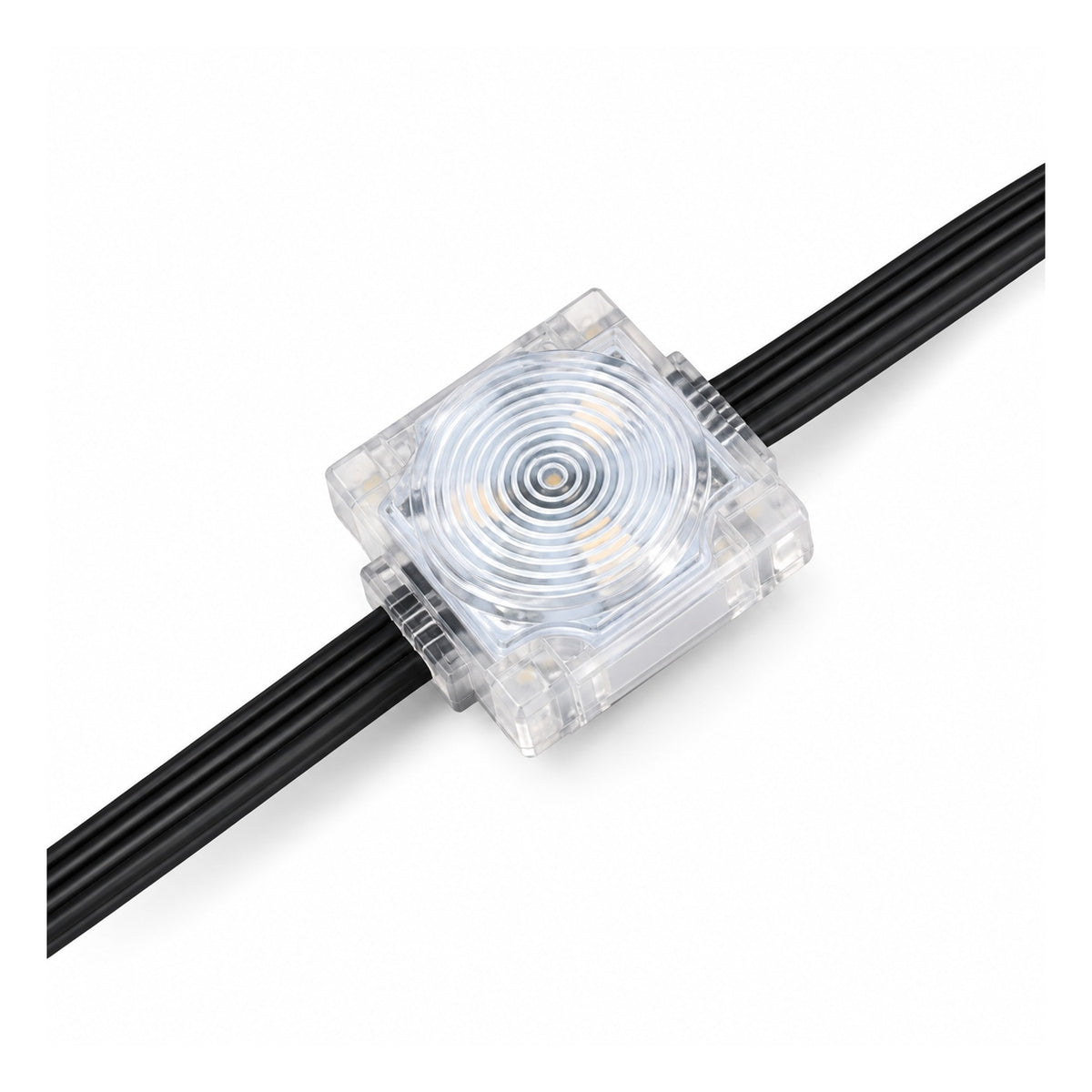

P0030 Point Source Light | 0.7W IP68
Model: P0030
Compact outdoor point-source LED module for media façade, linear pixel and decorative architectural lighting.
Applications
Suitable places: Buildings, bridges, rivers and other media-façade and architectural lighting applications.
Product Features
- Transparent / durable PC body material with electrostatic spray surface treatment where applicable.
- Waterproof point-source construction for architectural media applications.
- Wide 120° beam angle for dot-matrix or façade pixel effects.
- ON-OFF or DMX512 external control on applicable systems.
- IP68 protection grade for reliable outdoor use.
Technical Specifications
| Model | P0030 |
|---|---|
| Product Type | Point Source |
| Power | 0.7W |
| Light Source | LED / 3 pcs |
| Color Temperature | 3000K / 4000K / 5700K / RGBW |
| Beam Angle | 120° |
| Input Voltage | DC 12V |
| Control Mode | ON-OFF / DMX512 |
| IP Rating | IP68 |
| Net Weight | 15 g |
| Product Size | 33 × 29 × 38 mm |
| Package Specification | 40 pcs / string / bag |
| Outside Box Specifications / Quantity | 600×400×350 mm / 800 pcs |
Catalogue-based data. Please confirm configuration, beam angle, voltage and control details before ordering.
